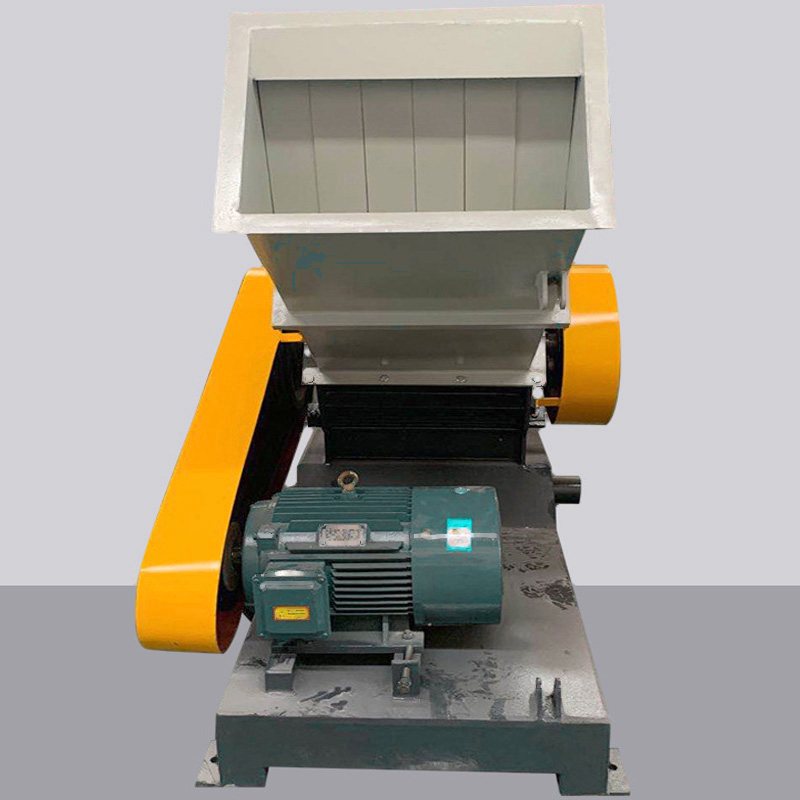

SWP Series Horizontal Plastic Crusher
A horizontal SWP series crusher designed for long pipes, profiles and sheet with a wide feed throat.
RAL 5021 · semi-matt finish
Production line introduction
How the SWP Series Horizontal Plastic Crusher is engineered, and which sub-assemblies protect the properties your customers actually buy.
A horizontal SWP series crusher designed for long pipes, profiles and sheet with a wide feed throat.
Every BENK line is matched to the material and product you actually sell. The extruder, die, calibration or forming section and the downstream automation are sized together, then assembled and trial run in our Zhangjiagang works before shipment, so the performance you see in the factory acceptance test is the performance you install. The machine frame is finished in RAL 5021 water blue with a semi-matt powder coating.
Technical Parameters of SWP Series Horizontal Plastic Crusher
Reference values for the standard configuration. Final width, thickness, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Rotor | 300 – 700 mm |
| Motor | 11 – 45 kW |
| Capacity | 200 – 1200 kg/h |
| Feed throat | Wide horizontal opening |
| Blades | Hardened alloy steel |
| Options | Conveyor feed and dust extraction |
Need a model outside this table? Send us your sheet size, resin and target output — BENK will return a sized configuration with a budgetary price.
Production line technical advantages
Every sub-assembly below is selected to protect the properties your customers buy: transparency, gauge, strength and surface.
Heavy duty construction
The frame, rotor and cutting chamber are built for continuous operation with filled and reinforced plastics.
Hardened cutting parts
Blades and discs are made from hardened alloy steel, and the blade gap is adjustable to keep granulate quality consistent.
Safety and noise control
Soundproofed housings, safety interlocks and emergency stops are standard on the equipment.
Easy maintenance
Split housings and quick release covers shorten cleaning and blade change time.
Integration ready
Conveyors, dust extraction and controls are available to integrate the machine with an existing line.
RAL 5021 finish
The machine frame is powder coated in RAL 5021 water blue with a semi-matt finish.
Production line advantages
- Heavy duty construction — The frame, rotor and cutting chamber are built for continuous operation with filled and reinforced plastics.
- Hardened cutting parts — Blades and discs are made from hardened alloy steel, and the blade gap is adjustable to keep granulate quality consistent.
- Safety and noise control — Soundproofed housings, safety interlocks and emergency stops are standard on the equipment.
- Easy maintenance — Split housings and quick release covers shorten cleaning and blade change time.
Built to run
Material preparation, feeding, downstream handling and packing can be integrated into one turnkey scope.
Process flow
From raw material to finished pack, each station is matched in capacity so the line runs at the rated output without a bottleneck.
- Material in-feed
- Size reduction
- Cutting chamber
- Screening / classification
- Discharge conveying
- Dust extraction
- Metal separation
- Packing
Wide applicability
Typical end uses for the material this line produces, based on the applications BENK equipment already serves worldwide.
In-line reclaim
Reclaim of sprues and edge trim directly at the extrusion line.
Recycling plant
Size reduction and pulverizing stages in a recycling plant.
Material preparation
Powder preparation and feeding for mixing and compounding.
Options and auxiliary equipment
Configure the line for the market you sell into. Popular additions include:
- Feed and discharge conveyors
- Dust extraction and filtration
- Screw conveyor and air conveying
- Metal detector and separator
- Wear resistant blade upgrade
- PLC interlock with the existing line
Why buy from BENK Machinery
Extrusion specialists, not traders
BENK designs and builds extrusion lines in Zhangjiagang with an in-house R&D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every line is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy-efficient drives, permanent magnet motors and optimized heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the line hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about this aux.
How do I choose the right size?
Are the cutting parts replaceable?
Can the machine be integrated with my existing line?
What is the delivery time?
Get a quotation for the SWP Series Horizontal Plastic Crusher
Tell us the material, sheet or film size, target output and the country the line will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
