The exterior building-products market is moving toward complete systems. A manufacturer that can supply siding, soffit, corner profiles, J-trim, window trim and matching accessories has a clear advantage over a supplier that offers only one profile.

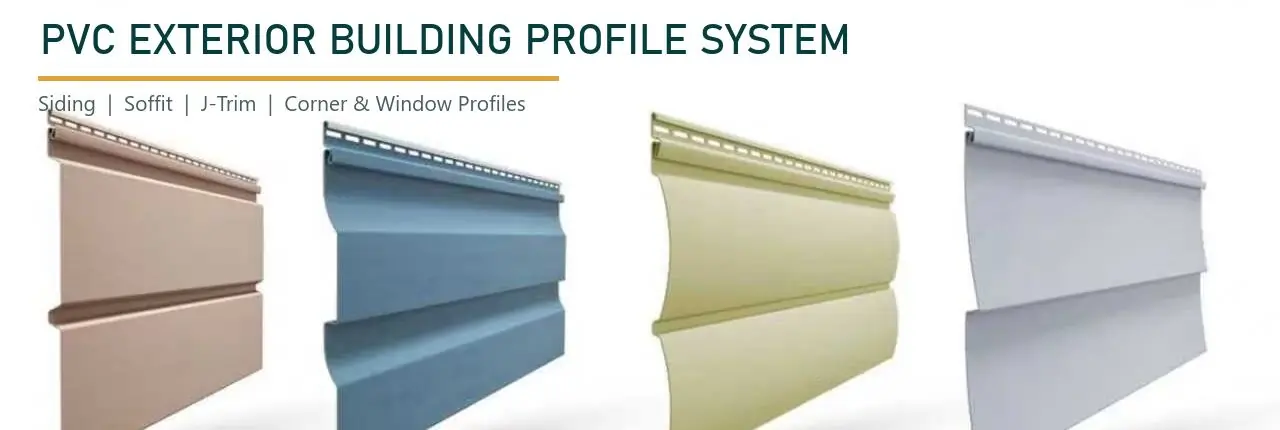

The product family shown in the reference image covers a wide range of PVC exterior building profiles: exterior wall cladding, log and ship-lap siding, block-house profiles, soffit panels, J-profiles, starter strips, inside and outside corners, H-profiles, window reveals, casing trims, drip caps, window surround profiles and decorative moldings.
BENK Machinery provides complete standard extrusion solutions for these products. The line can be configured for PVC, PVC/ASA co-extrusion, WPC and other thermoplastic building profiles, covering material preparation, extrusion, calibration, cooling, haul-off, online punching, cutting and automatic stacking.
One Complete Product System, Many Market Opportunities
A complete exterior profile program gives building-material producers more opportunities to sell to distributors, contractors, renovation companies and DIY markets. Instead of selling only a wall panel, the producer can offer a coordinated system with the same color, surface finish and installation logic.
Typical products include:
- PVC exterior wall cladding and siding
- Log siding, ship-lap siding, block-house siding and herringbone profiles
- PVC soffit panels, perforated soffit and solid soffit
- J-channel and flexible J-profile
- Starter profile and finish profile
- Inside corner and outside corner profiles
- H-profile and connecting profiles
- Window reveal and window surround profiles
- Door and window casing trims
- Drip cap and sill profiles
- Decorative molding and finishing accessories
These profiles are used in residential buildings, apartment renovations, commercial facades, garden rooms, modular houses, agricultural buildings and light industrial buildings.
What Equipment Is Needed to Produce PVC Building Profiles?
A complete PVC profile extrusion line is more than an extruder. Stable production depends on every section working within the same process window.
1. Raw Material Mixing
PVC powder, calcium carbonate, heat stabilizers, processing aids, impact modifiers, lubricants, UV stabilizers and color masterbatch must be mixed consistently. A high-speed mixer and cooling mixer help reduce batch variation and improve surface quality.
2. Extrusion System
Conical twin-screw extruders are widely used for PVC profiles because they provide controlled shear, good plastification and stable pressure. For products requiring a weather-resistant surface, an additional co-extruder can apply an ASA or PVC outer layer.
BENK can configure single-screw, twin-screw and co-extrusion systems according to the material, profile structure and target output.
3. Profile Die Head
The die head determines the outer shape, wall thicknesses, hollow chambers and surface quality of the profile. Siding, soffit and trim products have different flow balances, so each die must be engineered for the specific cross-section.
For a complete product family, BENK can support multiple die sets for different profiles on the same line.
4. Vacuum Calibration and Cooling
The extrusion profile enters a calibration die and vacuum tank immediately after leaving the die head. Vacuum calibration controls the outer dimensions, wall thickness and surface finish. The cooling length and water temperature must be matched to the extrusion speed to avoid warping, sink marks and dimensional variation.
5. Haul-Off and Cutting
A caterpillar haul-off unit pulls the profile steadily without deformation. The haul-off speed and cutter cycle must remain synchronized with the extruder and downstream equipment. Automatic cutting improves end-face quality and reduces labor.
6. Online Punching for Soffit
Perforated soffit requires precise online punching. BENK can integrate punching equipment into the line so the holes are positioned consistently at production speed.
7. Stacking and Packaging
Automatic stacking and packaging systems reduce manual handling, protect the surface finish and prepare products for storage and shipment.
PVC and ASA/PVC Co-Extrusion
PVC profiles offer good stiffness, dimensional stability and processability. For outdoor applications, ASA/PVC co-extrusion is often used to improve color retention and weather resistance. The ASA surface layer protects the visible side of the profile while the PVC substrate provides strength and cost efficiency.
A co-extrusion line typically includes:
- Main PVC extruder
- ASA or color-layer co-extruder
- Multi-layer co-extrusion die
- Vacuum calibration system
- Cooling and haul-off equipment
- Online surface treatment or lamination
- Cutting and stacking system
WPC Exterior Wall Cladding
WPC exterior wall cladding is another growing product category. It combines PVC or PE with wood powder and additives to create a wood-like surface, improved stiffness and lower water absorption. WPC cladding and siding are commonly used in facades, garden structures, courtyards and light commercial buildings.
The extrusion line can be configured for different profile designs, surface embossing and co-extrusion. Raw material moisture, wood powder dispersion and cooling control are important for a stable WPC profile.
Standard BENK Extrusion Solution
BENK can supply a complete standard solution from raw material to finished profile, including:
- Material formulation and process consultation
- High-speed mixing and feeding system
- Conical twin-screw or single-screw extruder
- ASA/PVC co-extrusion system
- Profile die and calibration die
- Vacuum calibration tank and cooling system
- Caterpillar haul-off machine
- Online punching unit
- Automatic cutting machine
- Stacking and packaging table
- Electrical control and automation system
- Factory test, installation and operator training
The line can be designed for a single profile or a complete product family, including wall cladding, siding, soffit, J-trim, corner profiles, window trim, reveals and decorative accessories.
Process Flow
The typical production process is:
Raw material mixing → feeding → extrusion → co-extrusion → profile calibration → cooling → haul-off → online punching → cutting → stacking → packaging
Each stage must be matched to the profile shape, material formula and target output. A complete standard solution helps reduce trial-and-error, shorten commissioning time and improve production consistency.
Applications and Market Demand
PVC and WPC building profiles are used in:
- Residential exterior walls and facades
- Apartment renovation and exterior insulation systems
- Window and door surrounds
- Soffit and roof-edge finishing
- Commercial buildings and shop facades
- Garden rooms, villas and modular buildings
- Agricultural and light industrial buildings
- Decorative wall cladding and interior feature walls
The demand for low-maintenance, moisture-resistant and easy-to-install exterior products continues to grow. Manufacturers that can produce a complete system are better positioned to serve distributors, contractors and project buyers.
Why Choose BENK for a Complete Extrusion Line?
BENK specializes in plastic extrusion equipment and complete production-line solutions. For PVC exterior building profiles, we can provide:
- Product and profile engineering support
- Standard and customized line configuration
- PVC, ASA/PVC and WPC process experience
- Factory trial production before shipment
- Installation, commissioning and training
- Spare parts and long-term technical support
If you are planning a PVC siding production line, PVC wall panel extrusion line, PVC soffit machine, J-channel production line, PVC window profile line, ASA/PVC co-extrusion line or WPC exterior cladding line, BENK can provide a complete standard solution based on your profile drawing, material and target output.
BENK provides complete extrusion solutions for the PVC siding extrusion line, PVC exterior wall cladding production line, PVC soffit production line, PVC J-channel extrusion line, PVC window profile extrusion line, ASA/PVC co-extrusion line and WPC wall cladding extrusion line markets.
