Nano Flat Dripper
A fine pitch flat emitter made to very tight tolerance for narrow emitter spacing and dense row crops.
RAL 5021 · semi-matt finishProduct introduction
How the Nano Flat Dripper is engineered, and which sub-assemblies protect the performance your customers actually buy.
The nano flat dripper is the small, high precision member of the flat dripper family. It is designed for drip tape where emitters are placed very close together, which is common in cotton, vegetables and other densely planted crops.
Because the part is small, the moulding tolerance matters even more. BENK MACHINE produces nano drippers on modern high cavity moulds with a pure polyethylene compound, giving small dimensional variance and consistent flexibility, so the emitter feeds reliably at high speed and discharges uniformly in the field.

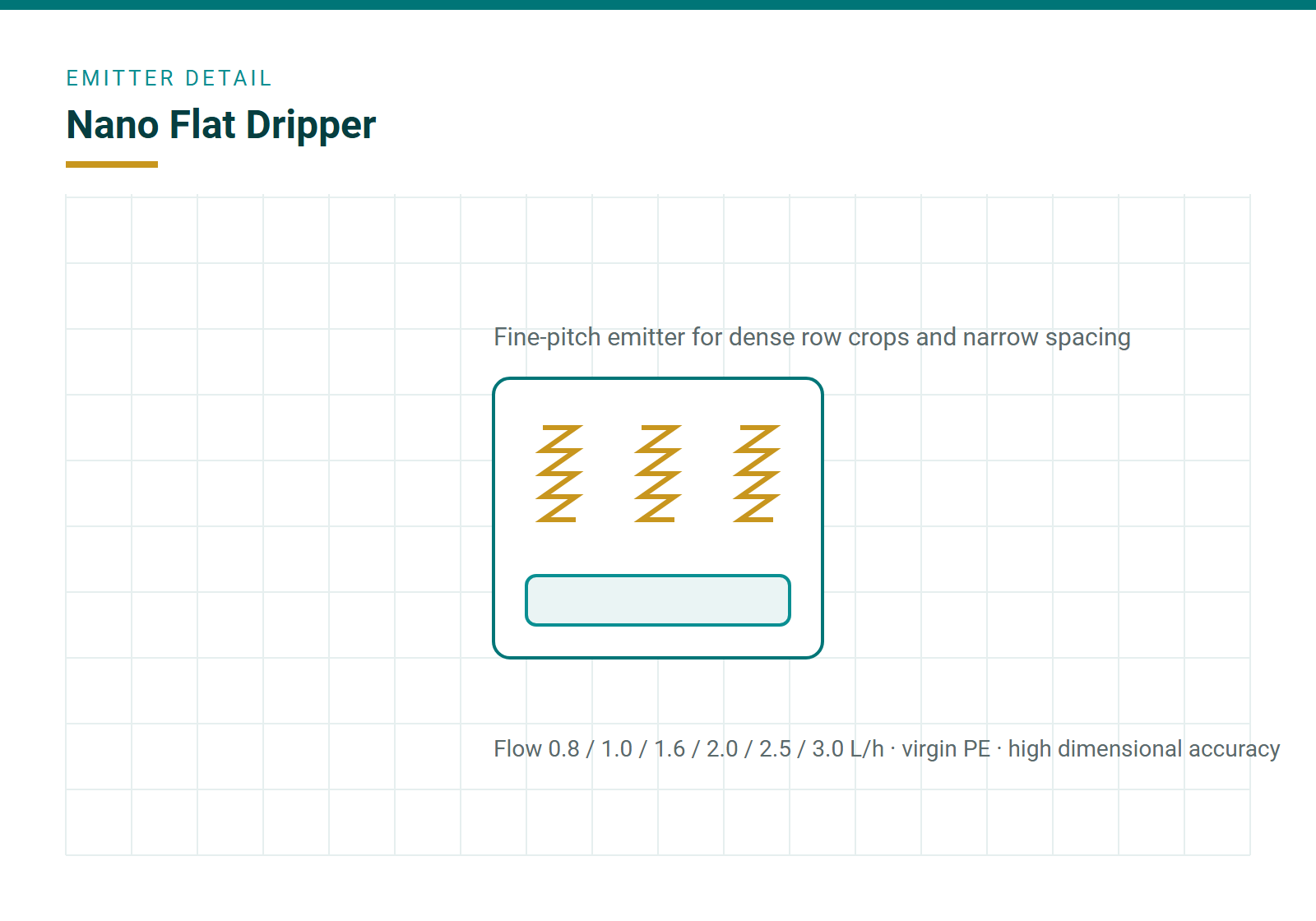

Product images and technical drawings
Equipment photographs and engineering illustrations of the product construction.
Technical parameters
Reference values for the standard configuration. Final dimensions, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Product type | Nano flat dripper for fine pitch drip tape |
| Flow rates | 0.8, 1.0, 1.6, 2.0, 2.5, 3.0 L/h |
| Material | Virgin polyethylene |
| Dimensional accuracy | High, held by precision multi-cavity moulds |
| Inlet | Three dimensional filter inlet |
| Channel | Stepped self-cleaning labyrinth |
| Spacing | Suited to small emitter spacing on dense row crops |
| Packing | Bulk packed for automatic line feeding |
Need a configuration outside this table? Send us your product drawing, resin and target output and BENK MACHINE will return a sized proposal with a budgetary price.
Technical advantages
Every sub-assembly below is selected to protect the performance your customers buy.
Fine pitch capability
Small overall size allows the close emitter spacing that dense row crops need.
Tight tolerance
Precision moulding keeps the part dimensions consistent, which is essential both for automatic feeding and for flow accuracy.
Consistent flexibility
A pure polyethylene compound gives predictable flexibility, so the emitter seats correctly during insertion.
Self-cleaning channel
Stepped teeth in the labyrinth flush particles through and reduce blockage.
Reliable at high speed
The part is designed to feed and orient reliably in a high speed insertion unit.
Proven in the field
The nano type is used by leading international drip tape producers.
Key benefits
- Fine pitch capability — Small overall size allows the close emitter spacing that dense row crops need.
- Tight tolerance — Precision moulding keeps the part dimensions consistent, which is essential both for automatic feeding and for flow accuracy.
- Consistent flexibility — A pure polyethylene compound gives predictable flexibility, so the emitter seats correctly during insertion.
- Self-cleaning channel — Stepped teeth in the labyrinth flush particles through and reduce blockage.
Built to run
Material preparation, processing and downstream handling can be integrated into one turnkey scope from a single supplier.
Process flow
Each station is matched in capacity so the machine runs at the rated output without a bottleneck.
- Resin drying
- High cavity injection moulding
- Cooling and ejection
- Vision inspection and sorting
- Bulk packing
- High speed feeding and orientation
- Insertion into fine pitch tape
- Outlet punching and winding
Applications
Typical end uses for this product, based on the applications BENK MACHINE equipment already serves worldwide.
Cotton
Fine emitter spacing for uniform moisture along the row.
Vegetables
Dense plantings where a close spacing is required.
Sugarcane and flowers
Narrow spacing on high value row crops.
Export tape
Tape made for buyers who specify a nano emitter.
Options and auxiliary equipment
Configure the machine for the market you sell into. Popular additions include:
- Colour coded caps per flow rate
- Custom flow rates on request
- Anti-drain and anti-siphon versions
- Bulk or boxed packing options
- Sample and pilot batches
- Private label packing
Why buy from BENK MACHINE
Extrusion specialists, not traders
BENK MACHINE designs and builds extrusion and drip irrigation equipment in Zhangjiagang with an in-house R and D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every machine is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy efficient drives, permanent magnet motors and optimised heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the machine hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about the Nano Flat Dripper.
How is the nano dripper different from a standard flat dripper?
Which flow rates are available?
Which crops use the nano dripper?
Get a quotation for the Nano Flat Dripper
Tell us the product specification, target output and the country the machine will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
