Drip Irrigation Flow and Pressure Tester
A test bench that measures flow uniformity and the pressure and flow relationship of drip tape, drip pipe and emitters, with a printable report.
RAL 5021 · semi-matt finishProduct introduction
How the Drip Irrigation Flow and Pressure Tester is engineered, and which sub-assemblies protect the performance your customers actually buy.
Flow uniformity is the performance figure a buyer actually checks, so a producer needs a reliable way to measure it. The test bench applies a controlled pressure to a length of tape or pipe and records the flow from each outlet.
The BENK MACHINE tester integrates pressure control and data acquisition. Pressure is set from a computer, flow and pressure are logged simultaneously, the pressure curve is displayed on screen and a report can be printed for the batch record. The bench is used both for routine quality control and for new product development.
Product images and technical drawings
Equipment photographs and engineering illustrations of the product construction.
Technical parameters
Reference values for the standard configuration. Final dimensions, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Purpose | Flow uniformity and pressure and flow relationship testing |
| Products tested | Labyrinth drip tape, inline drip tape, drip pipe, emitters |
| Flow test range | 0 to 50 L per minute |
| Pressure control | Set from the computer with digital display |
| Data acquisition | Simultaneous pressure and flow logging |
| Output | On-screen pressure curve and printable test report |
| Safety | Main power switch and emergency stop |
| Construction | Stainless steel water circuit and bench frame |
Need a configuration outside this table? Send us your product drawing, resin and target output and BENK MACHINE will return a sized proposal with a budgetary price.
Technical advantages
Every sub-assembly below is selected to protect the performance your customers buy.
Integrated control and logging
Pressure control and flow measurement are combined, which saves both labour and test time.
Accurate and repeatable
Stable pressure regulation makes results comparable between batches and between operators.
Automatic recording
Pressure and flow are logged continuously, so nothing depends on manual note taking.
Printable report
A test report can be printed directly for the batch record or for a customer.

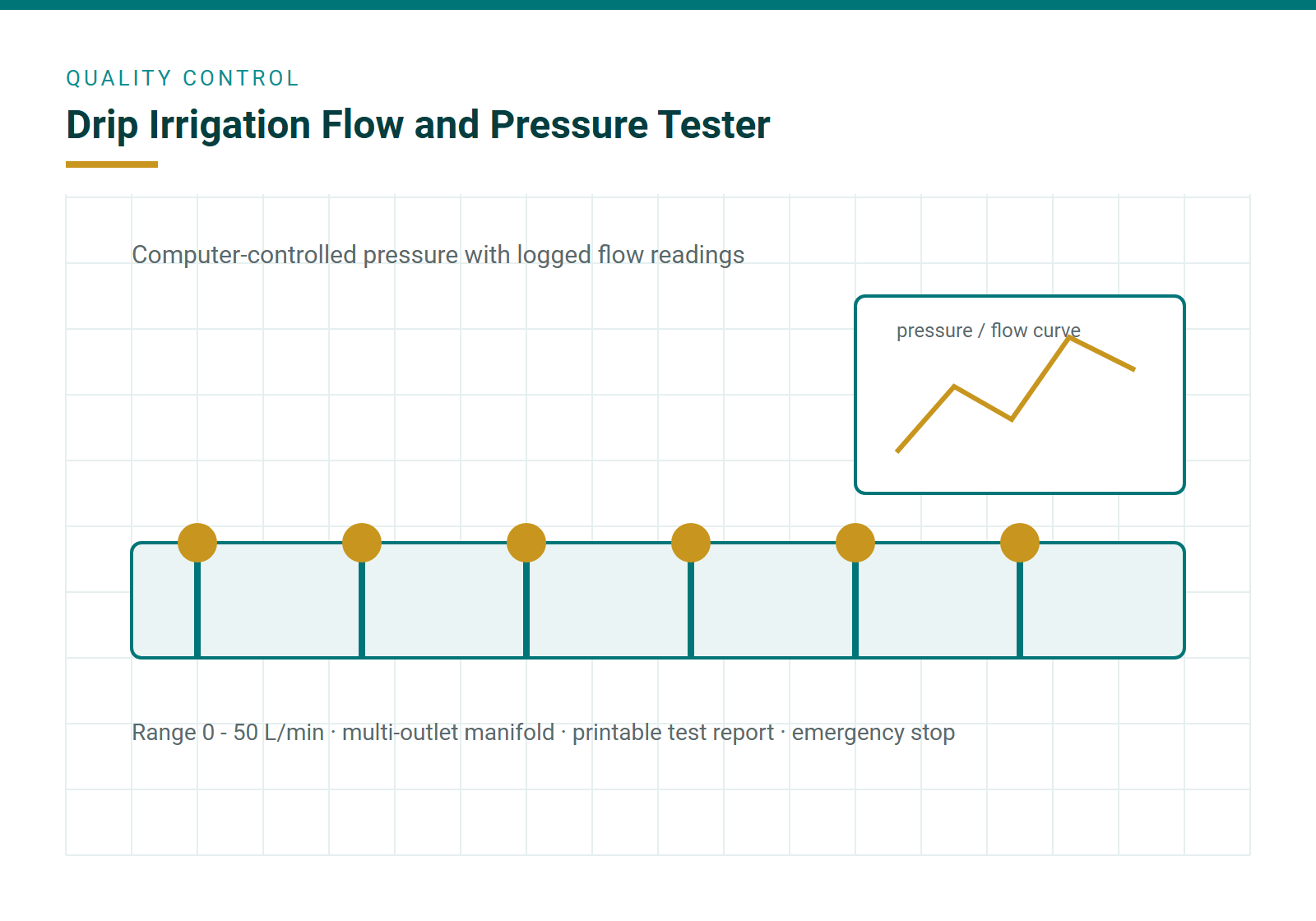

Multi-outlet manifold
Several outlets are tested at once, which shortens the test cycle.
Useful in development
The same bench is used to compare flow channel designs during product development.
Key benefits
- Integrated control and logging — Pressure control and flow measurement are combined, which saves both labour and test time.
- Accurate and repeatable — Stable pressure regulation makes results comparable between batches and between operators.
- Automatic recording — Pressure and flow are logged continuously, so nothing depends on manual note taking.
- Printable report — A test report can be printed directly for the batch record or for a customer.
Built to run
Material preparation, processing and downstream handling can be integrated into one turnkey scope from a single supplier.
Process flow
Each station is matched in capacity so the machine runs at the rated output without a bottleneck.
- Prepare the sample length of tape or pipe
- Connect the sample to the manifold
- Set the test pressure on the computer
- Log flow and pressure simultaneously
- Display the pressure and flow curve
- Compare against specification
- Print the test report
- Record the batch result
Applications
Typical end uses for this product, based on the applications BENK MACHINE equipment already serves worldwide.
Routine quality control
Testing each production batch before shipment.
New product development
Comparing flow channel designs and emitter types.
Customer acceptance
Producing a measured report for the buyer.
Incoming inspection
Checking purchased tape or pipe against specification.
Options and auxiliary equipment
Configure the machine for the market you sell into. Popular additions include:
- Extra winding stations
- Film wrapping station
- Coil labelling and printing
- Conveyor and palletising
- Stainless steel water circuit
- Extended warranty and service contract
Why buy from BENK MACHINE
Extrusion specialists, not traders
BENK MACHINE designs and builds extrusion and drip irrigation equipment in Zhangjiagang with an in-house R and D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every machine is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy efficient drives, permanent magnet motors and optimised heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the machine hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about the Drip Irrigation Flow and Pressure Tester.
What flow range does the tester cover?
Can the results be recorded automatically?
How many outlets can be tested at once?
Get a quotation for the Drip Irrigation Flow and Pressure Tester
Tell us the product specification, target output and the country the machine will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
