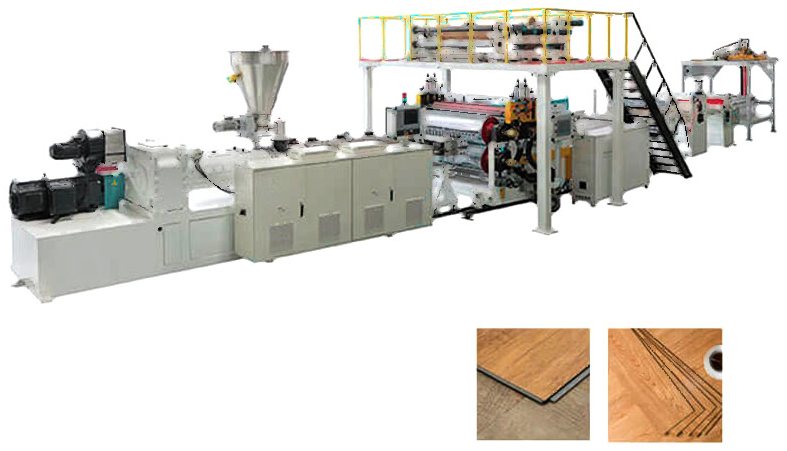

SPC Vinyl Floor Production Line
A complete SPC rigid core flooring line with four-roll calender, online lamination and UV coating for 3.5-8 mm click-lock plank.
RAL 5021 · semi-matt finish
Production line introduction
How the SPC Vinyl Floor Production Line is engineered, and which sub-assemblies protect the properties your customers actually buy.
A complete SPC rigid core flooring line with four-roll calender, online lamination and UV coating for 3.5-8 mm click-lock plank.
Every BENK line is matched to the material and product you actually sell. The extruder, die, calibration or forming section and the downstream automation are sized together, then assembled and trial run in our Zhangjiagang works before shipment, so the performance you see in the factory acceptance test is the performance you install. The machine frame is finished in RAL 5021 water blue with a semi-matt powder coating.
Technical Parameters of SPC Vinyl Floor Production Line
Reference values for the standard configuration. Final width, thickness, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Raw material | PVC resin + CaCO3 compound |
| Plank width | 935 – 1220 mm |
| Plank thickness | 3.5 – 8 mm |
| Line speed | 3 – 12 m/min |
| Output | 400 – 1200 kg/h |
| Main motor | 110 – 250 kW |
Need a model outside this table? Send us your sheet size, resin and target output — BENK will return a sized configuration with a budgetary price.
Production line technical advantages
Every sub-assembly below is selected to protect the properties your customers buy: transparency, gauge, strength and surface.
Four roll calender
Uniform thickness and a perfectly flat surface, the two properties that decide click-lock quality.
Online lamination
Wear layer, decor film and backing are laminated in line, removing a second pass and handling damage.
UV coating and embossing
Registration embossing and UV top coating give the surface texture and scratch resistance customers expect.
Precision cutting
Servo flying cutter holds length tolerance below 1 mm at full line speed.
Energy efficient drive
Permanent magnet motors and optimized heater zones reduce kWh per square metre.
RAL 5021 finish
The machine frame is powder coated in RAL 5021 water blue with a semi-matt finish.
Production line advantages
- Four roll calender — Uniform thickness and a perfectly flat surface, the two properties that decide click-lock quality.
- Online lamination — Wear layer, decor film and backing are laminated in line, removing a second pass and handling damage.
- UV coating and embossing — Registration embossing and UV top coating give the surface texture and scratch resistance customers expect.
- Precision cutting — Servo flying cutter holds length tolerance below 1 mm at full line speed.
Built to run
Material preparation, feeding, downstream handling and packing can be integrated into one turnkey scope.
Process flow
From raw material to finished pack, each station is matched in capacity so the line runs at the rated output without a bottleneck.
- Material preparation
- Extrusion & filtration
- Melt pump
- Die & forming
- Calibration / cooling
- Haul-off
- Cutting
- Stacking & packing
Wide applicability
Typical end uses for the material this line produces, based on the applications BENK equipment already serves worldwide.
Residential flooring
Click-lock SPC planks for living areas, bedrooms and corridors with waterproof wear resistant surfaces.
Commercial flooring
Offices, retail and hospitality where high traffic and easy maintenance matter.
Underfloor heating
SPC rigid core tolerates underfloor heating with minimal dimensional movement.
Options and auxiliary equipment
Configure the line for the market you sell into. Popular additions include:
- Automatic stacking and packing
- Online thickness or weight measurement
- Co-extrusion for functional surface layer
- Trim and scrap recycling
- Upgraded PLC with recipe management
- Remote maintenance and fault diagnosis
Why buy from BENK Machinery
Extrusion specialists, not traders
BENK designs and builds extrusion lines in Zhangjiagang with an in-house R&D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every line is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy-efficient drives, permanent magnet motors and optimized heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the line hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about this stone plastic composite flooring.
What thickness of SPC plank can the line produce?
Is the lamination done in line?
How is thickness controlled?
What is the delivery scope?
