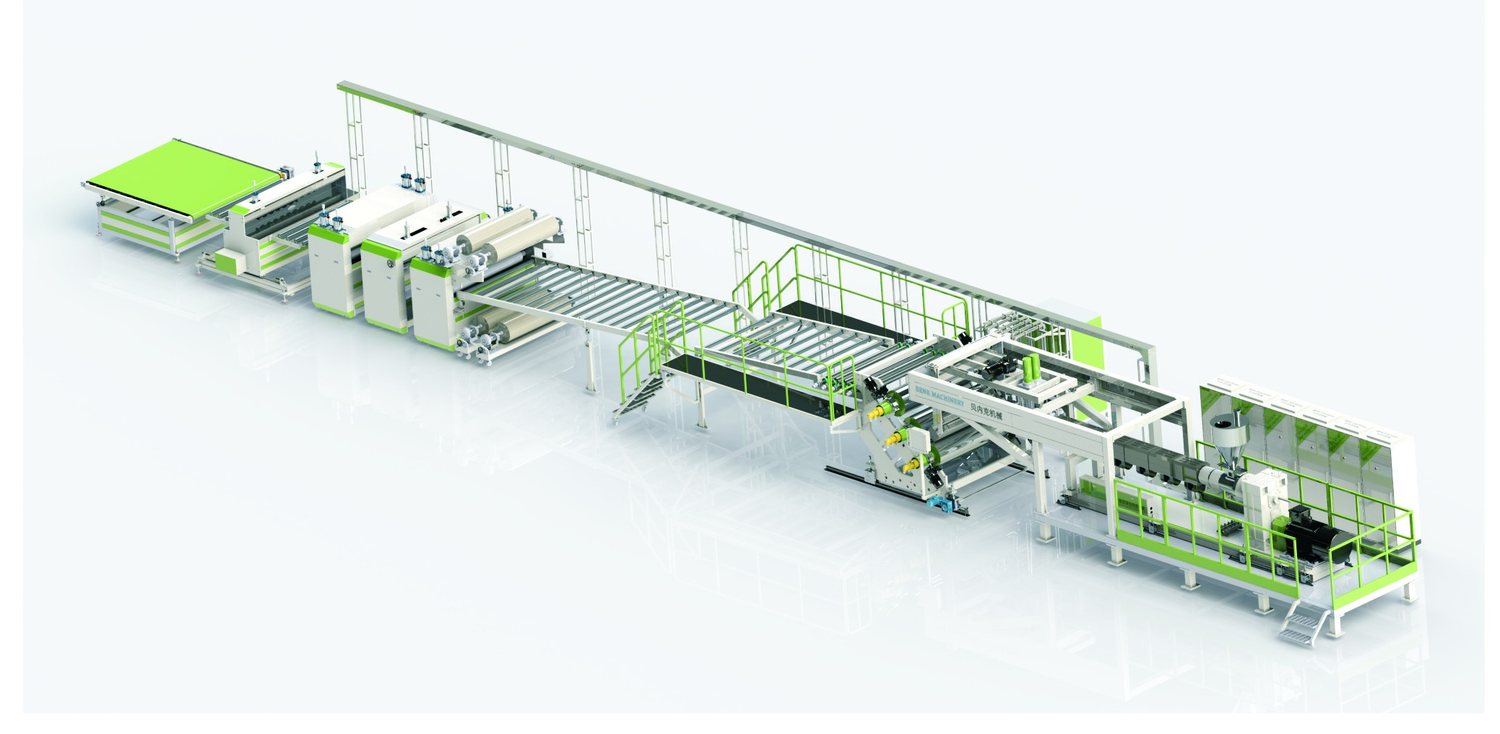

PC/PMMA/GPPS Transparent Board Extrusion Line
A turnkey line for crystal-clear PC, PMMA and GPPS solid sheet, built on a twin screw or single screw platform with mirror-finish rolls, external discharge gear pump and Siemens servo control.
RAL 5021 · semi-matt finish
Production line introduction
How the PC/PMMA/GPPS Transparent Board Extrusion Line is engineered, and which sub-assemblies protect the properties your customers actually buy.
The PC/PMMA/GPPS transparent board extrusion line is independently developed by the BENK technical team around a new twin screw extrusion platform and a high accuracy temperature control system. It is engineered for continuous production of high transparency, high quality transparent board and is widely used in advertising, construction, home appliance and automotive industries.
Because transparency is unforgiving, every stage is designed to remove the causes of haze: a degassing extruder barrel, an external discharge gear pump that prevents material backflow, ultra-mirror polished moulds and rollers, and a cooling system that eliminates water ripples and internal stress. The result is a smooth, bubble-free surface with excellent light transmittance that can be bent cold and thermoformed.
Technical Parameters of PC/PMMA/GPPS Transparent Board Extrusion Line
Twin screw and single screw configurations are both available. Output values are reference values for PC with a sheet width of 1220 mm; final performance is confirmed against your formulation, sheet size and downstream equipment.
| Item | Model | Twin screw extruder | Single screw extruder |
|---|---|---|---|
| Material | PC, PMMA, GPPS | PC, PMMA, GPPS | |
| Single extruder model | Ø75 / Ø85 / Ø95 | Ø120 / Ø130 | |
| Co-extruder model | Ø75+Ø45, Ø85+Ø45, Ø95+Ø45 | Ø120+Ø45, Ø130+Ø45 | |
| L/D ratio | 44:1 | 38:1 | |
| Product width | 1220 – 2100 mm | 1220 – 2100 mm | |
| Product thickness | 1.5 – 12 mm | 1.5 – 12 mm | |
| Main motor power | 160+37 kW / 200+37 kW / 315+37 kW | 160 kW / 200 kW | |
| Max extrusion capacity | 500 – 1200 kg/h | 450 – 800 kg/h |
Need a model outside this table? Send us your sheet size, resin and target output — BENK will return a sized configuration with a budgetary price.
Production line technical advantages
Every sub-assembly below is selected to protect the properties your customers buy: transparency, gauge, strength and surface.
New twin screw extruder
Higher output, lower energy consumption and better plasticizing adaptability. The line can also be paired with a single screw extruder to produce functional board.
High quality moulds
Well-known domestic mould brands, ultra-mirror polishing and grinding of the mould cavity, with simulation analysis combined with production to optimize the cavity structure.
External discharge gear pump
Effectively prevents material backflow and avoids defects such as flow marks inside transparent products.
Ultra-mirror roller treatment
Guarantees product transparency with no water ripples, plus independently developed high strength and high rigidity roller design so the sheet does not deform.
Appearance design
Simple and beautiful industrial design, with the machine frame powder coated in RAL 5021 water blue for a durable semi-matt finish.
Intelligent control system
Siemens servo control and Ethernet technology provide high efficiency and high stability, and support remote maintenance and fault diagnosis to reduce downtime.
Precision cutting
High precision meter with servo cutting, cutting accuracy below 1 mm, combined with robot palletizing for a fully automatic end of line.
Perfect after-sales service
Equipment installation and commissioning, production support and lifelong technical service from the BENK engineering team.
Production line advantages
- High transparency and high quality surface — Precision processing ensures a smooth surface, no bubbles and an excellent transparent effect.
- Multi-material adaptability — Supports PC, PMMA, GPPS and other transparent materials to meet different end uses.
- Stable and efficient — Twin screw extruder and optimized cooling system ensure stable production and high output.
- Energy saving and environmental protection — Optimized energy consumption design and efficient thermal management meet modern environmental protection standards.
- Intelligent control — Automated control system accurately controls the production process to ensure dimensional accuracy and consistency.
Built to run
Masterbatch dosing, drying, edge-trim recycling, embossing and protective film lamination can be integrated on request.
Process flow
From raw material to finished pack, each station is matched in capacity so the line runs at the rated output without a bottleneck.
- Raw material drying & feeding
- Twin screw extrusion
- Melt pump & filtration
- T-die sheet forming
- Mirror roll calendering & cooling
- Haul-off & edge trimming
- Servo cutting
- Robot palletizing

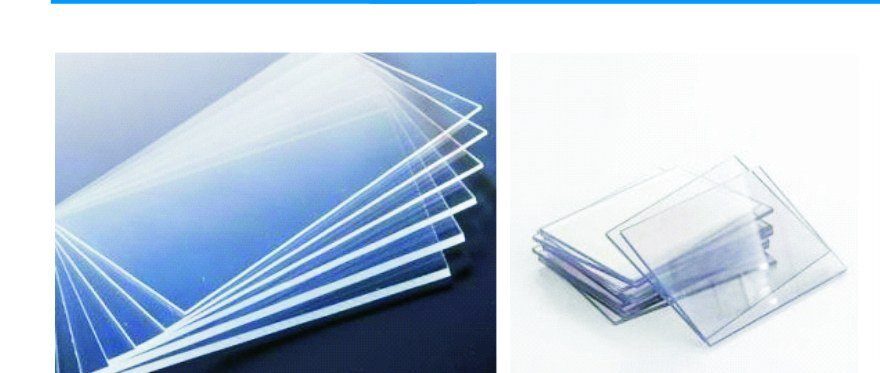

Wide applicability
Typical end uses for the material this line produces, based on the applications BENK equipment already serves worldwide.
Architectural glazing
PC and PMMA transparent board is used for skylights, rain awnings and lighting roofs thanks to excellent light transmittance and impact resistance.
Advertising & display
Telephone booths, road signs and light box advertising display benefit from the glass-like clarity and easy thermoforming of the sheet.
Doors, windows & decoration
High-grade decorative materials for doors and windows, with stable physical properties and strong flame retardancy.
Sound insulation barriers
Transparent panels for sound insulation barriers in noisy environments, combining light transmission with impact resistance.
Options and auxiliary equipment
Configure the line for the market you sell into. Popular additions include:
- Automatic gravimetric dosing and drying system
- Co-extrusion AB / ABA / ABC layer structure
- Anti-UV and anti-scratch functional layer
- Embossing unit for diffuser and frosted sheet
- Online thickness gauge with closed-loop control
- Protective film laminating and trimming unit
- Robot palletizer and automatic packing
Why buy from BENK Machinery
Extrusion specialists, not traders
BENK designs and builds extrusion lines in Zhangjiagang with an in-house R&D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every line is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy-efficient drives, permanent magnet motors and optimized heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the line hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about this transparent board / solid sheet line.
What sheet width and thickness can the PC/PMMA/GPPS transparent board extrusion line produce?
Can the line run recycled or regrind material?
How do you guarantee transparency and avoid bubbles and flow marks?
What is the typical lead time and delivery scope?
Do you provide installation and training overseas?
Get a quotation for the PC/PMMA/GPPS Transparent Board Extrusion Line
Tell us the material, sheet or film size, target output and the country the line will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
