PE and PVC Layflat Hose Extrusion Line
An extrusion line for flexible layflat hose used for low pressure irrigation, water transfer and general industry.
RAL 5021 · semi-matt finishProduct introduction
How the PE and PVC Layflat Hose Extrusion Line is engineered, and which sub-assemblies protect the performance your customers actually buy.
Layflat hose is light, flexible and rolls flat for transport, which makes it the practical choice for moving water around a farm or a construction site. The line extrudes the hose with an optional reinforcement layer and winds it into coils ready for use.
BENK MACHINE supplies the complete line including extruder, die head, vacuum sizing, cooling, haul-off, reinforcement feeding where used, and coil winding. Vacuum, PVC or PE versions are available, and the finished hose can be supplied with pre-punched outlets and welded connectors.

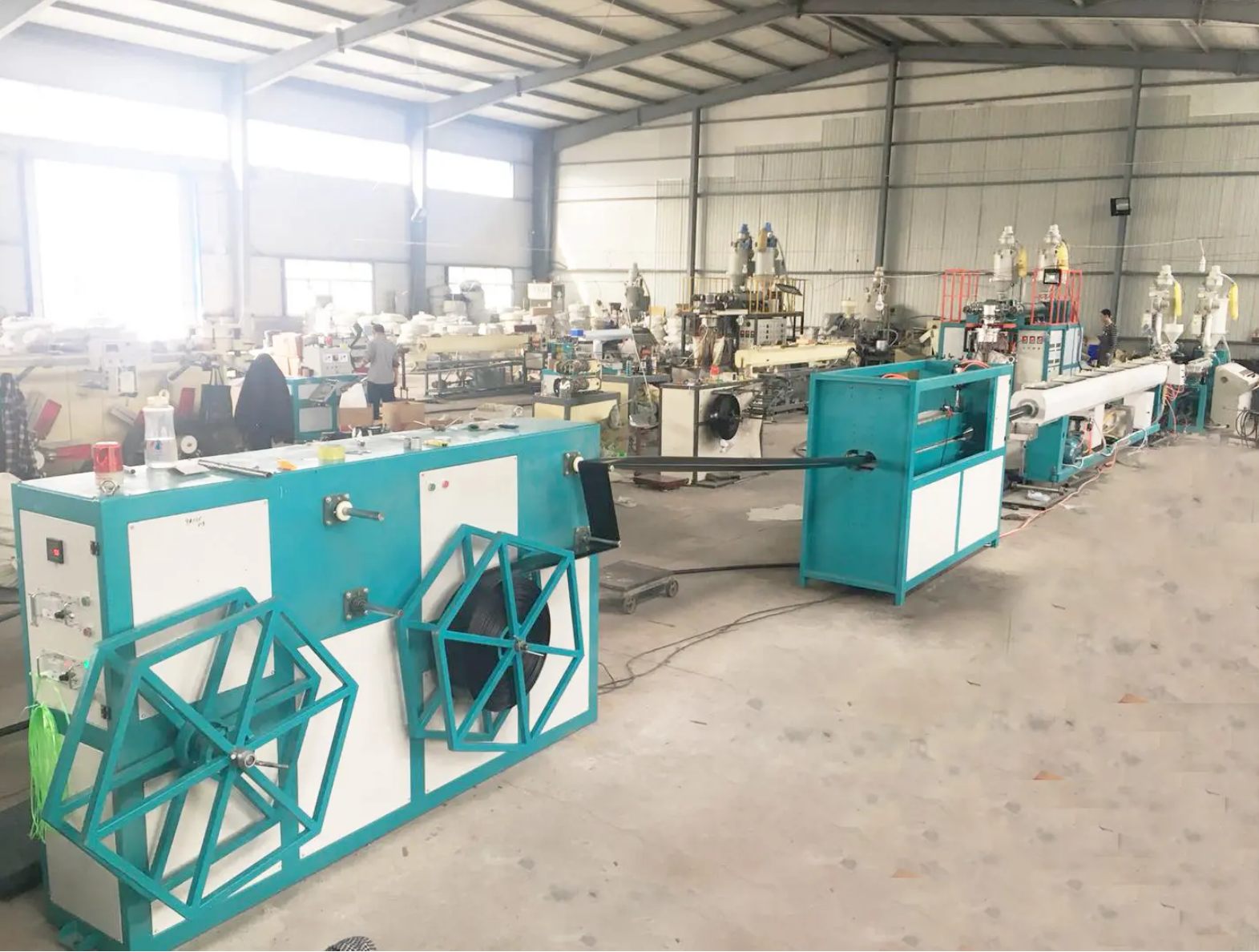

Product images and technical drawings
Equipment photographs and engineering illustrations of the product construction.
Technical parameters
Reference values for the standard configuration. Final dimensions, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Product type | PE or PVC layflat hose, optionally fibre reinforced |
| Hose diameter range | 25 – 160 mm |
| Models | PE55 (1 to 2 inch), PE75 (2 to 6 inch), PE90 (4 to 8 inch) |
| Extruder motor power | 18.5 / 22 / 37 kW |
| Layers | Single layer or reinforced multilayer |
| Material | Non-toxic recyclable polyethylene or PVC compound |
| Features | Anti-ageing and UV stabilised, 10 year plus service life |
| Downstream | Haul-off, marking, length counting and coil winding |
Need a configuration outside this table? Send us your product drawing, resin and target output and BENK MACHINE will return a sized proposal with a budgetary price.
Technical advantages
Every sub-assembly below is selected to protect the performance your customers buy.
Light and easy to handle
Layflat hose weighs far less than rigid pipe and stores flat, so it is cheaper to transport and faster to deploy.
Reinforced construction
Optional fibre or yarn reinforcement raises the working pressure and resists punctures in rough field conditions.
UV and ageing resistance
Stabilised compounds give a service life of ten years or more in outdoor use.
Flexible routing
The hose follows uneven ground and can be moved between blocks without rigid fittings.
Matched downstream
Haul-off, cooling, marking and winding are sized to the extruder so the line runs at rated output.
Option to add outlets
The line can be combined with a pre-punching and welding unit to produce main line hose with welded outlets.
Key benefits
- Light and easy to handle — Layflat hose weighs far less than rigid pipe and stores flat, so it is cheaper to transport and faster to deploy.
- Reinforced construction — Optional fibre or yarn reinforcement raises the working pressure and resists punctures in rough field conditions.
- UV and ageing resistance — Stabilised compounds give a service life of ten years or more in outdoor use.
- Flexible routing — The hose follows uneven ground and can be moved between blocks without rigid fittings.
Built to run
Material preparation, processing and downstream handling can be integrated into one turnkey scope from a single supplier.
Process flow
Each station is matched in capacity so the machine runs at the rated output without a bottleneck.
- Resin dosing
- Extrusion
- Die head and hose forming
- Reinforcement feeding where used
- Vacuum sizing and cooling
- Haul-off and tension control
- Length counting and marking
- Coil winding and packing
Applications
Typical end uses for this product, based on the applications BENK MACHINE equipment already serves worldwide.
Low pressure irrigation
Moving water from the source to the drip tape main line.
Water transfer and discharge
Construction sites, dewatering and temporary supply.
Uneven ground
Fields where rigid pipe cannot follow the terrain.
Greenhouse supply
Flexible distribution inside and around protected cultivation.
Options and auxiliary equipment
Configure the machine for the market you sell into. Popular additions include:
- Fibre reinforcement unit
- Pre-punching and ultrasonic welding unit
- Automatic coil winder
- Online thickness gauge
- Printing and marking unit
- Extended cooling tank
Why buy from BENK MACHINE
Extrusion specialists, not traders
BENK MACHINE designs and builds extrusion and drip irrigation equipment in Zhangjiagang with an in-house R and D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every machine is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy efficient drives, permanent magnet motors and optimised heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the machine hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about the PE and PVC Layflat Hose Extrusion Line.
Which diameters can be produced?
Is reinforcement available?
Can the hose have welded outlets?
Get a quotation for the PE and PVC Layflat Hose Extrusion Line
Tell us the product specification, target output and the country the machine will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
