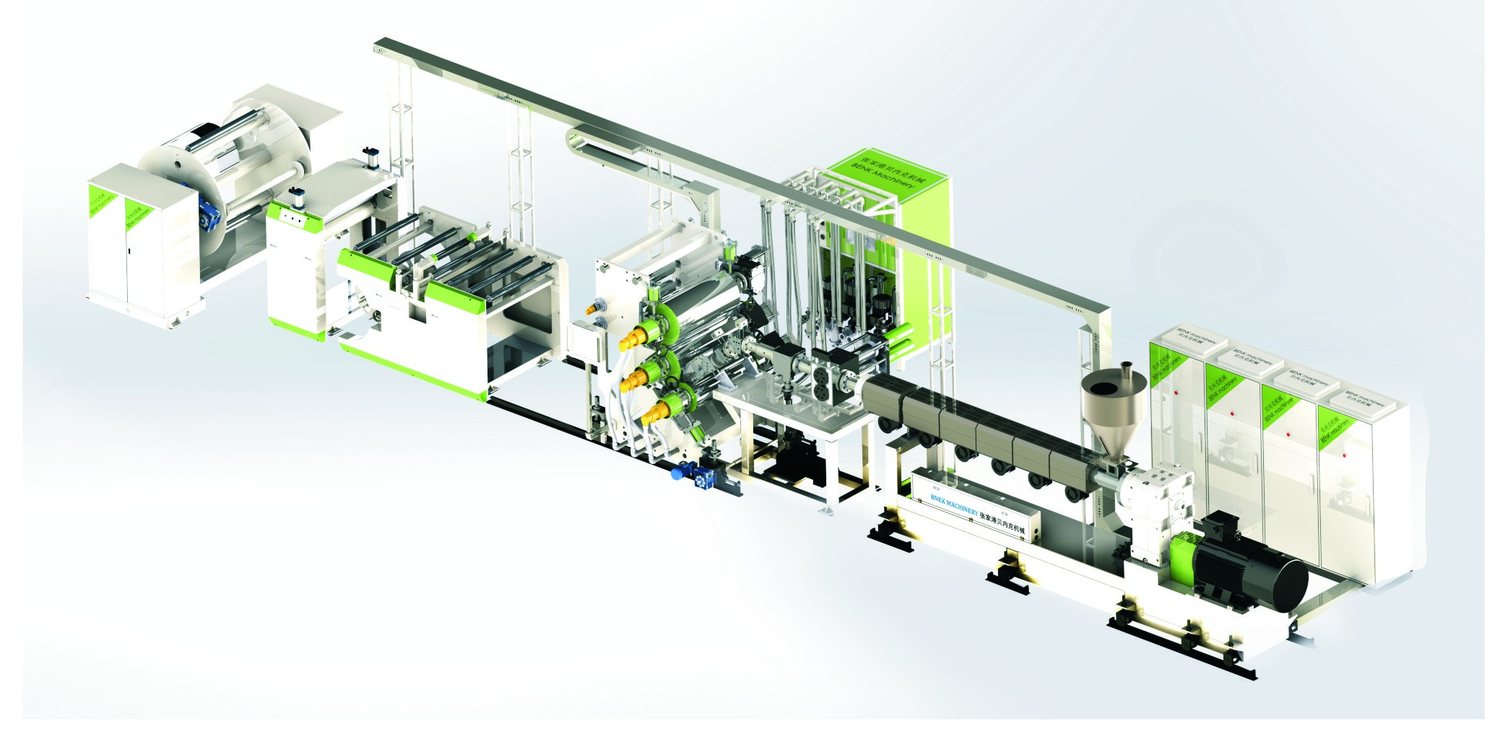

PP/PS/PLA High Speed Single Screw Sheet Extrusion Line
A small screw, large motor concept that delivers fast plasticizing, high output and clean sheet for PP, PS and PLA thermoforming and stationery applications.
RAL 5021 · semi-matt finish
Production line introduction
How the PP/PS/PLA High Speed Single Screw Sheet Extrusion Line is engineered, and which sub-assemblies protect the properties your customers actually buy.
The PP/PS/PLA high speed single screw sheet extrusion line is independently developed by the BENK team for manufacturers of high quality plastic sheet. It is widely used in food packaging, advertising material and stationery fields, where fast and stable production decides the cost per kilogram.
Instead of oversizing the screw, the line uses a high speed single screw with a large motor and a special feeding section, so shear and melting are completed quickly and evenly. A permanent magnet motor, wear resistant alloy screw and barrel, and a three-roll forming machine with a large roll angle complete a package that is fast, clean and energy efficient.
Technical Parameters of PP/PS/PLA High Speed Single Screw Sheet Extrusion Line
Values are reference values for PP sheet at 0.5 mm thickness. Output and width are confirmed against your resin and final sheet specification.
| Item | Model | High speed single screw extruder |
|---|---|---|
| Material | PP, PS, PLA | |
| Extruder model | Ø65 / Ø75 / Ø90 | |
| L/D ratio | 40:1 | |
| Product width | 650 – 1500 mm | |
| Product thickness | 0.15 – 3 mm | |
| Main motor power | 132 kW / 160 kW / 200 kW | |
| Max extrusion capacity | 450 – 850 kg/h |
Need a model outside this table? Send us your sheet size, resin and target output — BENK will return a sized configuration with a budgetary price.
Production line technical advantages
Every sub-assembly below is selected to protect the properties your customers buy: transparency, gauge, strength and surface.
Small screw, large motor design
High rotating speed and fast friction give full shearing and mixing, a good plasticizing effect and a defect-free sheet.
Permanent magnet motor
High output with low energy consumption; energy consumption is reduced by 5-15% compared with a conventional induction motor of the same output.
Special feeding port design
Increases the feeding amount, and the feeding efficiency is 2 to 3 times that of an ordinary single screw.
Wear resistant alloy material
A special alloy is used for the screw and barrel to reduce wear and extend service life, even when running mineral-filled compounds.
Three-roll forming machine
A large roll angle and excellent cooling effect deliver high transparency with no fogging during blister forming.
Appearance design
Simple and beautiful industrial design with a RAL 5021 water blue semi-matt powder coated frame.
Intelligent control system
Siemens servo control and Ethernet technology ensure equipment stability and accuracy, with remote maintenance and fault diagnosis.
Precise winding
The servo control system ensures safer and more accurate winding, and precise cutting is available for cut-to-length sheet.
Production line advantages
- High speed and high efficiency — A high performance single screw extruder improves production efficiency and shortens the payback period.
- High quality sheet — Precise temperature control and high quality moulds ensure a smooth and uniform sheet.
- Multi-material compatibility — Supports PP, PS, PLA and other materials, suitable for a variety of applications.
- Energy saving and environmental protection — An optimized heating and cooling system reduces energy consumption to meet environmental protection standards.
- Intelligent control — PLC control system with touch screen operation, convenient and accurate.
Built to run
Embossing, corona treatment and multi-layer co-extrusion feed blocks can be integrated for special surface effects.
Process flow
From raw material to finished pack, each station is matched in capacity so the line runs at the rated output without a bottleneck.
- Automatic feeding
- High speed single screw extrusion
- Melt filtration
- T-die sheet forming
- Three-roll cooling
- Haul-off & trimming
- Winding or cutting
- Packing

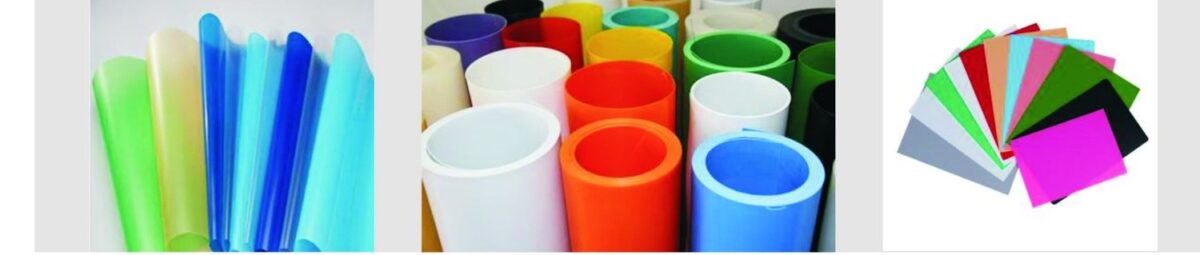

Wide applicability
Typical end uses for the material this line produces, based on the applications BENK equipment already serves worldwide.
Packaging sheet
PP/PS/PLA sheet extrusion supports single layer, double layer and multi-layer co-extrusion and is widely used in the packaging and stationery fields.
Blister and food packaging
PP/PS sheet can be used directly for food and electronic product packaging after blister forming.
Stationery production
PP transparent sheet, frosted sheet and two-colour sheet are suitable for stationery production, including folders, covers and filing products.
Advertising and display
Transparent and diffuser sheet for light boxes, displays and advertising panels.
Options and auxiliary equipment
Configure the line for the market you sell into. Popular additions include:
- Two-colour and three-layer co-extrusion
- Embossing and matte finishing rolls
- Corona treater for printing adhesion
- Automatic winder with splice table
- Cut-to-length shear with stacking table
- Online thickness gauge
- Dust-free protective film laminator
Why buy from BENK Machinery
Extrusion specialists, not traders
BENK designs and builds extrusion lines in Zhangjiagang with an in-house R&D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every line is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy-efficient drives, permanent magnet motors and optimized heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the line hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about this high speed sheet line.
What output can I expect from the PP/PS/PLA high speed sheet extrusion line?
Why is the screw small but the motor large?
Is the line suitable for two-colour or frosted stationery sheet?
How much energy does the permanent magnet motor save?
Can you supply a complete package through to packing?
Get a quotation for the PP/PS/PLA High Speed Single Screw Sheet Extrusion Line
Tell us the material, sheet or film size, target output and the country the line will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
