Irrigation Fittings and Pipe Moulds

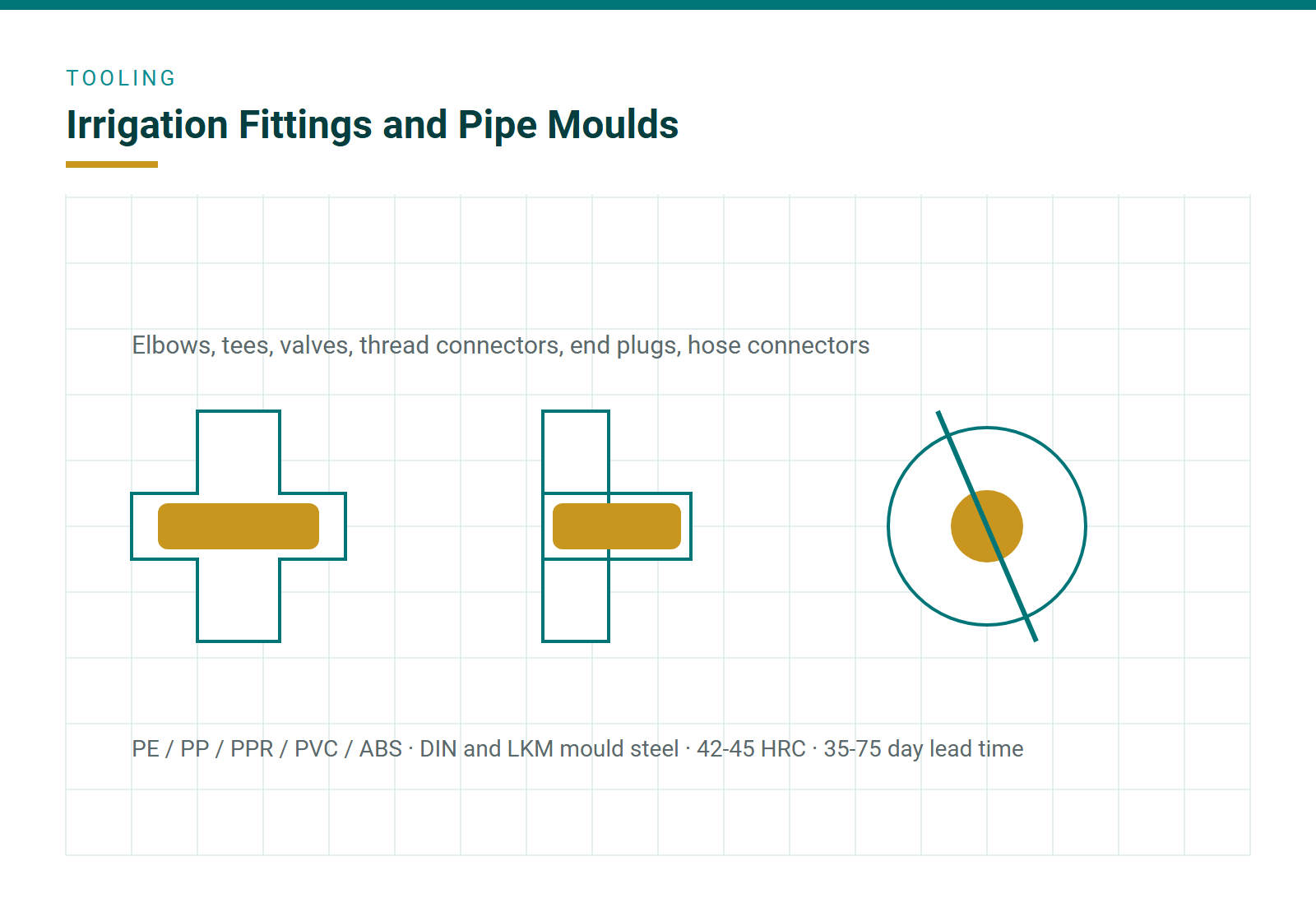

Injection moulds for the elbows, tees, valves, thread connectors, end plugs and hose connectors used across a drip irrigation system.
RAL 5021 · semi-matt finishProduct introduction
How the Irrigation Fittings and Pipe Moulds is engineered, and which sub-assemblies protect the performance your customers actually buy.
A drip irrigation system needs far more than tape and drippers. Elbows, tees, valves, thread connectors, end plugs and hose connectors all have to be moulded to a standard that seals reliably at working pressure.
BENK MACHINE has more than twenty years of experience in plastic injection moulds for irrigation. Moulds are built with DIN and LKM standard steel, baffle or chain drilled cooling, diamond polished surfaces and DME or HASCO standard components, and each tool is trialled before shipment.
Product images and technical drawings
Equipment photographs and engineering illustrations of the product construction.
Technical parameters
Reference values for the standard configuration. Final dimensions, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Parts produced | Elbows, tees, valves, thread connectors, end plugs, hose connectors |
| Materials | PE, PP, PPR, PVC, ABS |
| Cavity and core steel | DIN 1.2316, 1.2738, 1.2344, M300, 718, P20 |
| Mould base steel | S50C, LKM standard and equivalents |
| Cavity hardness | 42 – 45 HRC |
| Wear part hardness | 42 – 48 HRC |
| Cooling | Baffle cooling in cores, chain drilled cooling in cavity plates |
| Moulding warranty | 500,000 to 2,000,000 shots |
| Lead time | 35 – 75 working days |
Need a configuration outside this table? Send us your product drawing, resin and target output and BENK MACHINE will return a sized proposal with a budgetary price.
Technical advantages
Every sub-assembly below is selected to protect the performance your customers buy.
Twenty years of mould experience
The mould team has designed and built irrigation injection moulds for more than two decades.
Correct steel selection
Cavity and core steel is chosen according to the resin, the part geometry and the production volume.
Efficient cooling
Baffle cooling in the cores and chain drilled cooling in the cavity plates shorten the cycle.
Quality surface finish
Diamond polishing gives the sealing surfaces the finish needed for a leak free joint.
Standard components
DME and HASCO standard accessories simplify maintenance and spare parts supply.
Runner options
Cold or hot runner, selected according to the part and the annual volume.
Key benefits
- Twenty years of mould experience — The mould team has designed and built irrigation injection moulds for more than two decades.
- Correct steel selection — Cavity and core steel is chosen according to the resin, the part geometry and the production volume.
- Efficient cooling — Baffle cooling in the cores and chain drilled cooling in the cavity plates shorten the cycle.
- Quality surface finish — Diamond polishing gives the sealing surfaces the finish needed for a leak free joint.
Built to run
Material preparation, processing and downstream handling can be integrated into one turnkey scope from a single supplier.
Process flow
Each station is matched in capacity so the machine runs at the rated output without a bottleneck.
- Part and material review
- Mould design and cooling layout
- Steel preparation and machining
- Cavity and core finishing
- Polishing and surface treatment
- Assembly and fitting
- Trial shots and inspection
- Packing and shipment
Applications
Typical end uses for this product, based on the applications BENK MACHINE equipment already serves worldwide.
Drip irrigation systems
Connecting tape, pipe, main line and valves.
Layflat hose systems
Hose connectors, reducers and end plugs.
Greenhouse plumbing
Valves, filters and thread fittings.
Municipal and garden irrigation
Standard PE and PP fittings.
Options and auxiliary equipment
Configure the machine for the market you sell into. Popular additions include:
- Clean room enclosure for dripper moulding
- Robot take-out matched to the mould layout
- Hot runner temperature controller
- Spare cavity and core inserts
- Mould flow analysis report
- Vacuum drying and conveying
Why buy from BENK MACHINE
Extrusion specialists, not traders
BENK MACHINE designs and builds extrusion and drip irrigation equipment in Zhangjiagang with an in-house R and D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every machine is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy efficient drives, permanent magnet motors and optimised heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the machine hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about the Irrigation Fittings and Pipe Moulds.
What is the typical lead time?
How long is the mould warranted for?
Can you copy an existing fitting?
