Strip (T-Tape) Drip Tape Production Line
A continuous forming line that extrudes the strip flow channel and welds it to the tape wall, removing the separate emitter moulding step entirely.
RAL 5021 · semi-matt finishProduct introduction
How the Strip (T-Tape) Drip Tape Production Line is engineered, and which sub-assemblies protect the performance your customers actually buy.

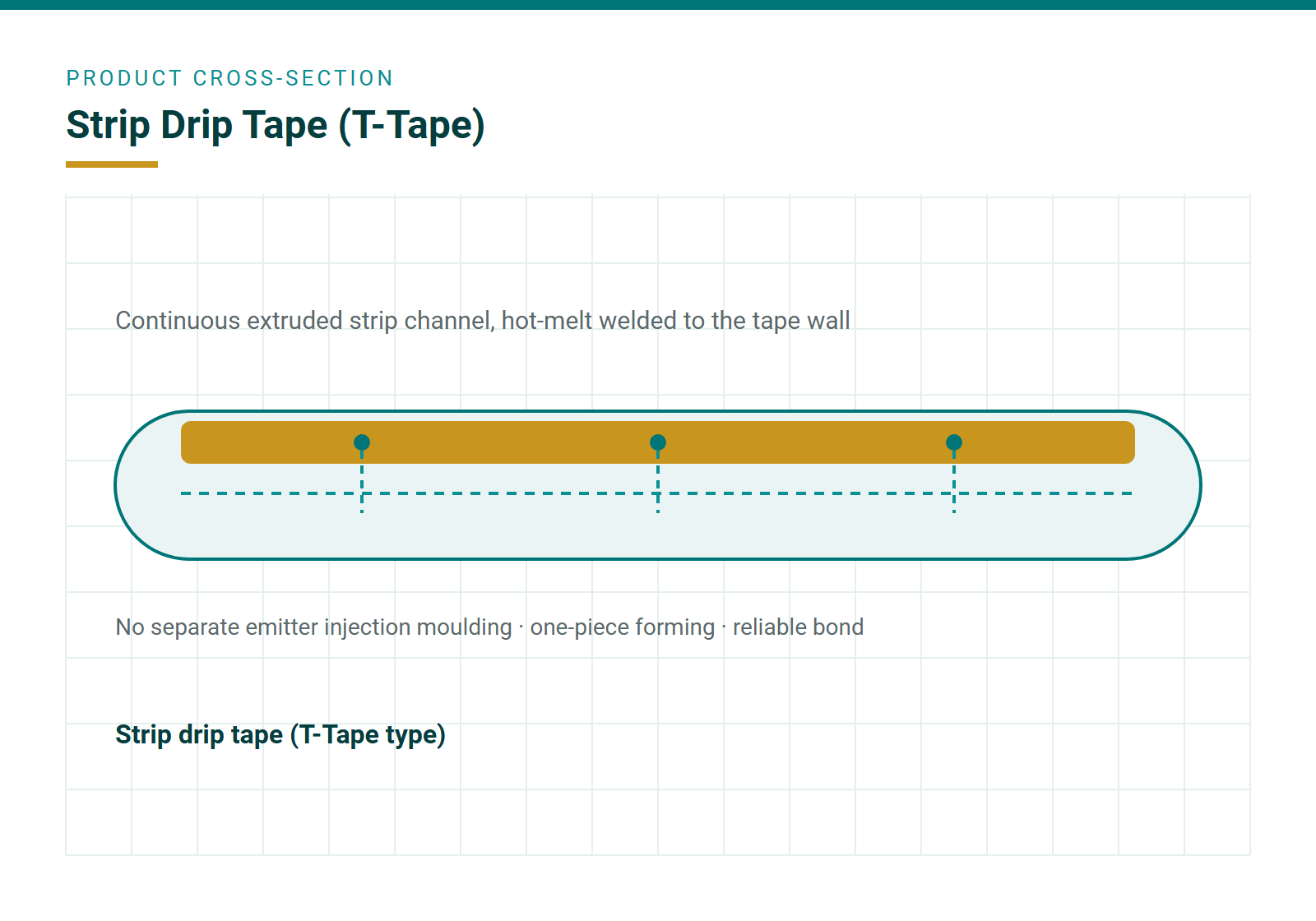

Instead of feeding discrete drippers, the strip line extrudes a continuous profiled strip and welds it onto the tape wall as the tube is formed. Because there is no separate emitter injection step, material cost and labour are lower and the bond is continuous along the whole tape.
The line is aimed at producers who want a product that differs from the standard flat dripper tape. Strip tape is often specified for premium domestic programmes and for export orders, and it is produced on a single integrated line with online inspection and automatic winding.

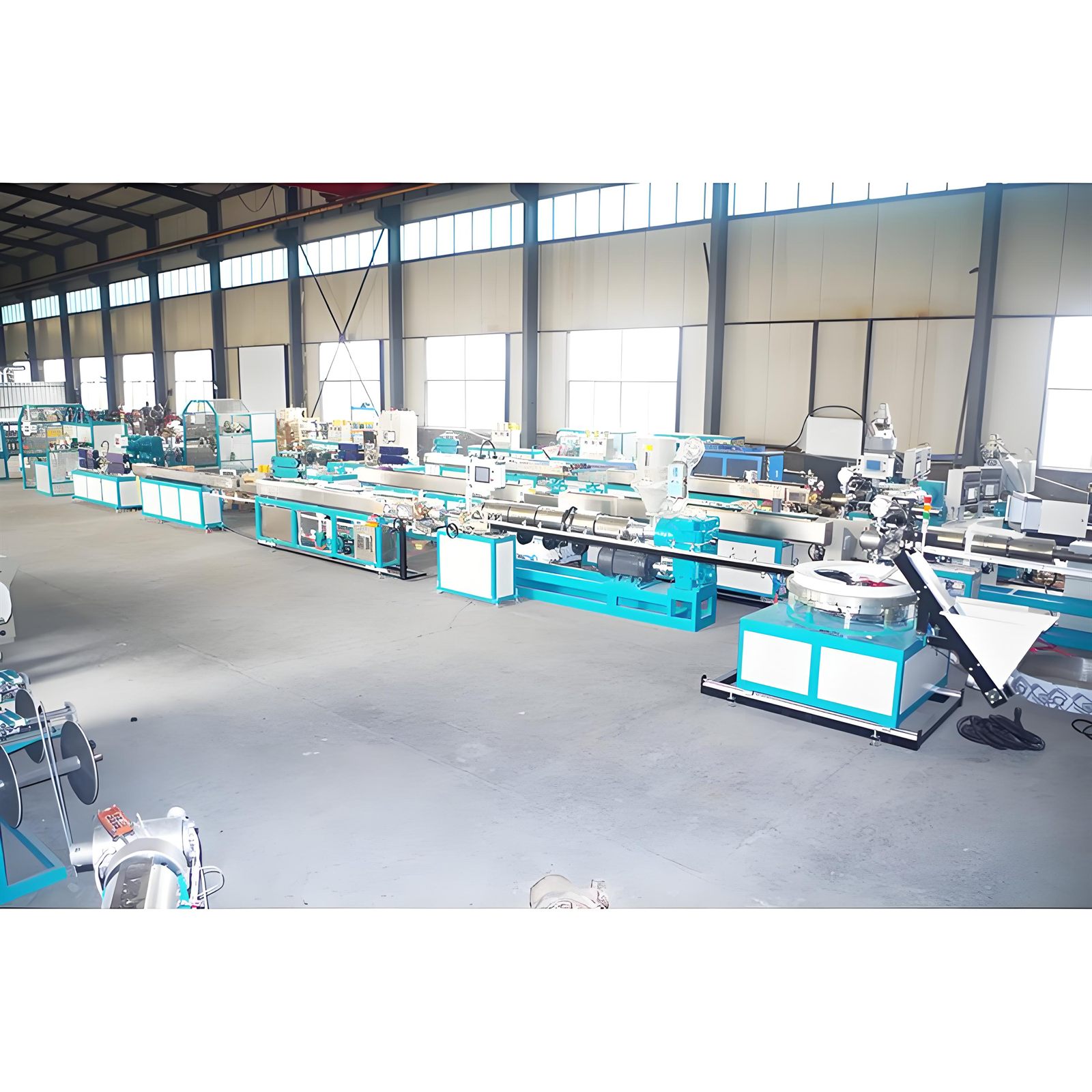

Product images and technical drawings
Equipment photographs and engineering illustrations of the product construction.
Technical parameters
Reference values for the standard configuration. Final dimensions, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Product type | Strip / T-Tape style drip tape |
| Flow channel | Continuous extruded strip, hot-melt bonded |
| Tape diameter | 16 mm standard, other sizes on request |
| Wall thickness | 0.15 – 0.4 mm typical |
| Emitter step | Eliminated, no dripper injection required |
| Line speed | High speed continuous running, rated on trial |
| Inspection | Online inspection system for channel and outlets |
| Winding | Automatic two station winder with length counting |
Need a configuration outside this table? Send us your product drawing, resin and target output and BENK MACHINE will return a sized proposal with a budgetary price.
Technical advantages
Every sub-assembly below is selected to protect the performance your customers buy.
One-piece forming
Strip and tape are produced in one continuous process, removing the emitter moulding and feeding stages.
Reliable bonding
Hot-melt synchronous welding gives a continuous bond that resists peeling better than discrete welded drippers.
Lower cost per metre
Less material handling and less labour per roll translate into a lower conversion cost.
High speed running
The line is designed for continuous operation and holds its speed across long production runs.
Fast size changeover
Tape size and outlet spacing can be changed quickly to suit different orders.
Differentiated product
Strip tape gives producers a premium product to sell alongside standard flat dripper tape.
Key benefits
- One-piece forming — Strip and tape are produced in one continuous process, removing the emitter moulding and feeding stages.
- Reliable bonding — Hot-melt synchronous welding gives a continuous bond that resists peeling better than discrete welded drippers.
- Lower cost per metre — Less material handling and less labour per roll translate into a lower conversion cost.
- High speed running — The line is designed for continuous operation and holds its speed across long production runs.
Built to run
Material preparation, processing and downstream handling can be integrated into one turnkey scope from a single supplier.
Process flow
Each station is matched in capacity so the machine runs at the rated output without a bottleneck.
- Resin dosing
- Extrusion and filtration
- Tube forming and sizing
- Strip extrusion and profile forming
- Hot-melt strip welding
- Outlet punching
- Online inspection
- Automatic winding and packing
Applications
Typical end uses for this product, based on the applications BENK MACHINE equipment already serves worldwide.
Protected cultivation
Greenhouses and plastic tunnels where uniform low flow is required.
Open field vegetables
Premium vegetable and melon programmes that specify strip tape.
Export programmes
Orders where a T-Tape type product is requested by the buyer.
Orchards and shelter belts
Long runs where a durable continuous bond is an advantage.
Options and auxiliary equipment
Configure the machine for the market you sell into. Popular additions include:
- Automatic reel change robot
- Online optical inspection with auto correction
- Gravimetric blender with extrusion process control
- Bimetallic screw and barrel
- Melt pump for stable pressure
- Remote maintenance and fault diagnosis
Why buy from BENK MACHINE
Extrusion specialists, not traders
BENK MACHINE designs and builds extrusion and drip irrigation equipment in Zhangjiagang with an in-house R and D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every machine is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy efficient drives, permanent magnet motors and optimised heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the machine hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about the Strip (T-Tape) Drip Tape Production Line.
Do I still need a dripper injection machine?
Can the line be switched between product sizes?
Is online inspection included?
Get a quotation for the Strip (T-Tape) Drip Tape Production Line
Tell us the product specification, target output and the country the machine will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
