Flat Dripper (Emitter)
The inline flat emitter used in drip tape, supplied in a range of flows with a self-cleaning labyrinth flow path and a precision inlet filter.
RAL 5021 · semi-matt finishProduct introduction
How the Flat Dripper (Emitter) is engineered, and which sub-assemblies protect the performance your customers actually buy.

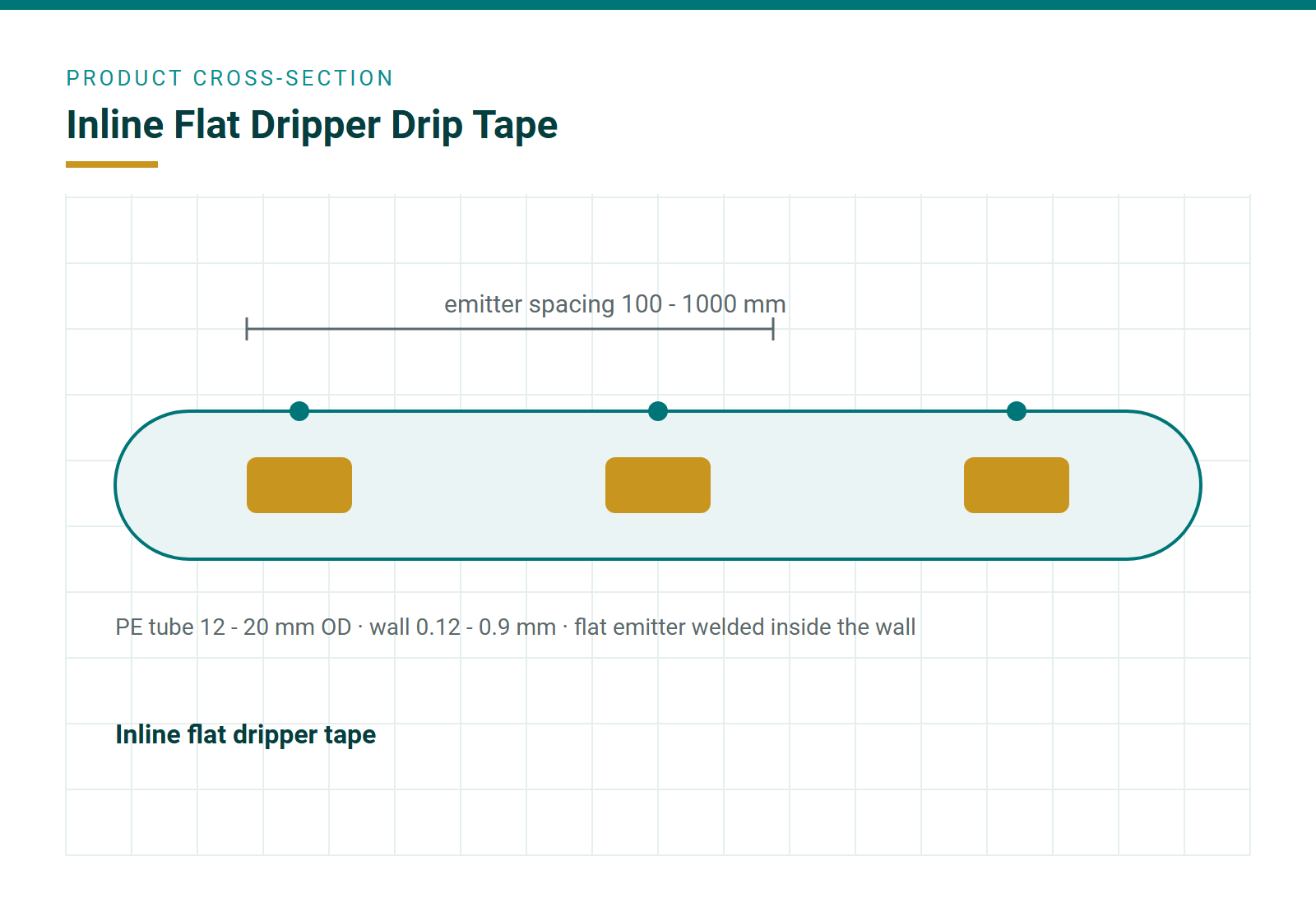

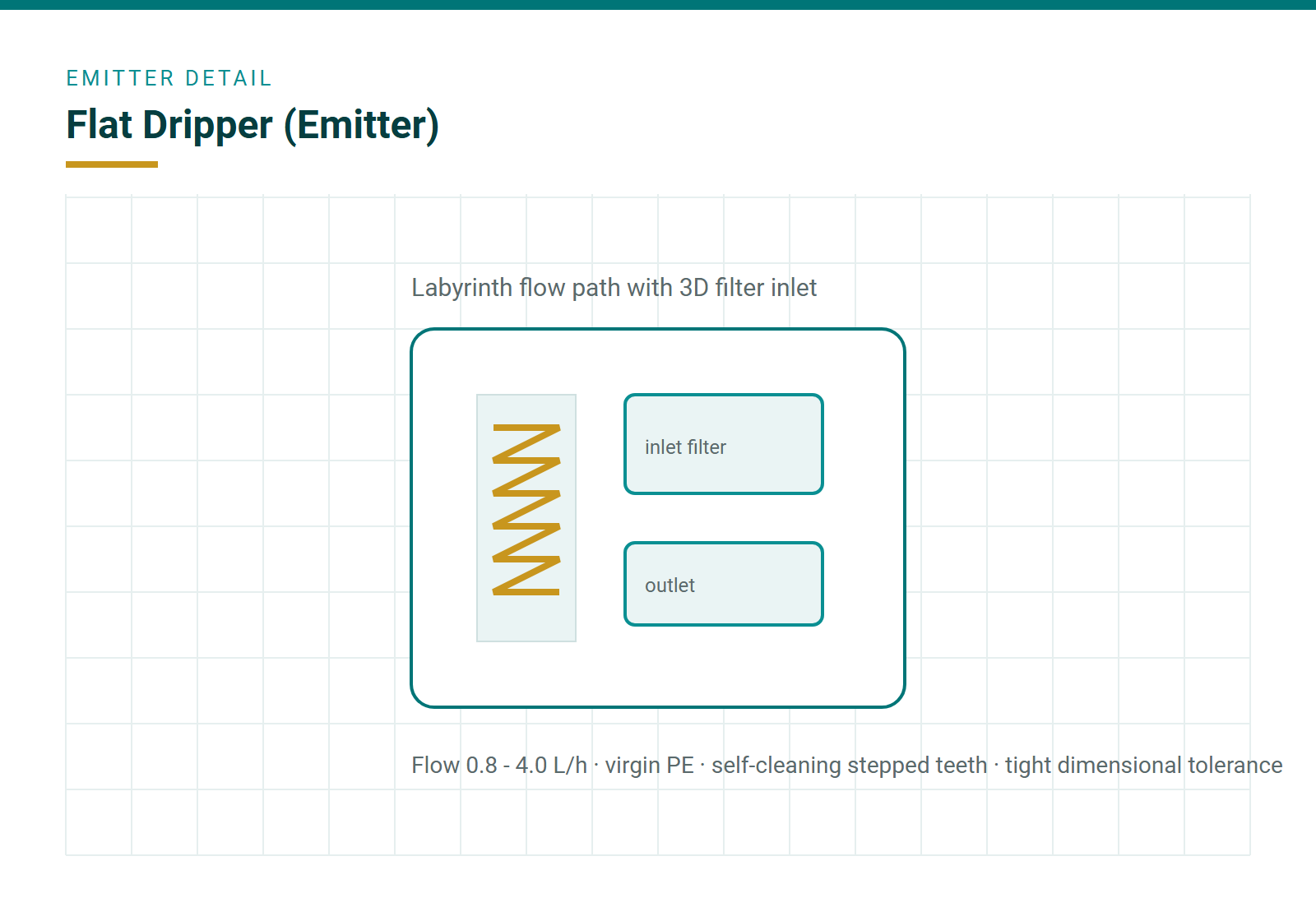

The flat dripper is the emitter inside almost every drip tape. Water enters through a fine inlet filter, passes along a labyrinth channel that dissipates pressure, and leaves through a punched outlet in the tape wall.
BENK MACHINE moulds flat drippers from virgin polyethylene on precision multi-cavity moulds, which keeps the dimensional tolerance tight and the flexibility of the part consistent. The three dimensional inlet design and the stepped teeth of the channel resist clogging and allow debris to be flushed through during operation.
Product images and technical drawings
Equipment photographs and engineering illustrations of the product construction.
Technical parameters
Reference values for the standard configuration. Final dimensions, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Product type | Inline flat dripper for drip tape |
| Flow rates | 0.8, 1.0, 1.6, 2.0, 2.5, 3.0, 4.0 L/h |
| Material | Virgin polyethylene, recyclable |
| Inlet | Three dimensional filter inlet |
| Flow channel | Labyrinth with stepped self-cleaning teeth |
| Dimensional tolerance | Tight, held by multi-cavity precision moulds |
| Options | Single hole, dual hole and middle hole versions |
| Packing | Bulk packed for automatic feeding on the tape line |
Need a configuration outside this table? Send us your product drawing, resin and target output and BENK MACHINE will return a sized proposal with a budgetary price.
Technical advantages
Every sub-assembly below is selected to protect the performance your customers buy.
Clog resistant inlet
The three dimensional filter admits water while holding back sand and organic debris.
Self-cleaning channel
The stepped teeth flush particles through during operation, which reduces blockage over the season.
Uniform discharge
Tight moulding tolerance keeps flow variation between emitters to a minimum.
Virgin PE compound
A pure compound gives consistent flexibility and dimensional stability, and the material is recyclable.
High cavity production
Moulded on 32 to 800 cavity tools, so unit cost falls as volume rises.
Available as nano type
A fine-pitch nano version is available for narrow emitter spacing and dense row crops.
Key benefits
- Clog resistant inlet — The three dimensional filter admits water while holding back sand and organic debris.
- Self-cleaning channel — The stepped teeth flush particles through during operation, which reduces blockage over the season.
- Uniform discharge — Tight moulding tolerance keeps flow variation between emitters to a minimum.
- Virgin PE compound — A pure compound gives consistent flexibility and dimensional stability, and the material is recyclable.
Built to run
Material preparation, processing and downstream handling can be integrated into one turnkey scope from a single supplier.
Process flow
Each station is matched in capacity so the machine runs at the rated output without a bottleneck.
- Resin drying
- Injection moulding in a multi-cavity mould
- Cooling and ejection
- Vision inspection and sorting
- Bulk packing
- Feeding to the drip tape line
- Insertion and welding into the tape
- Punched outlet formed in the wall
Applications
Typical end uses for this product, based on the applications BENK MACHINE equipment already serves worldwide.
Seasonal field crops
Cotton, potato and vegetables that use drip tape for one season.
Greenhouse crops
Tomato, cucumber, strawberry and melon under cover.
Dense row spacing
Nano flat drippers for very close emitter spacing.
Export tape production
Tape makers supplying international buyers who specify a known emitter.
Options and auxiliary equipment
Configure the machine for the market you sell into. Popular additions include:
- Colour coded caps per flow rate
- Custom flow rates on request
- Anti-drain and anti-siphon versions
- Bulk or boxed packing options
- Sample and pilot batches
- Private label packing
Why buy from BENK MACHINE
Extrusion specialists, not traders
BENK MACHINE designs and builds extrusion and drip irrigation equipment in Zhangjiagang with an in-house R and D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every machine is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy efficient drives, permanent magnet motors and optimised heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the machine hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about the Flat Dripper (Emitter).
Which flow rates are available?
Are dual outlet drippers available?
What is the benefit of the nano version?
Get a quotation for the Flat Dripper (Emitter)
Tell us the product specification, target output and the country the machine will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
