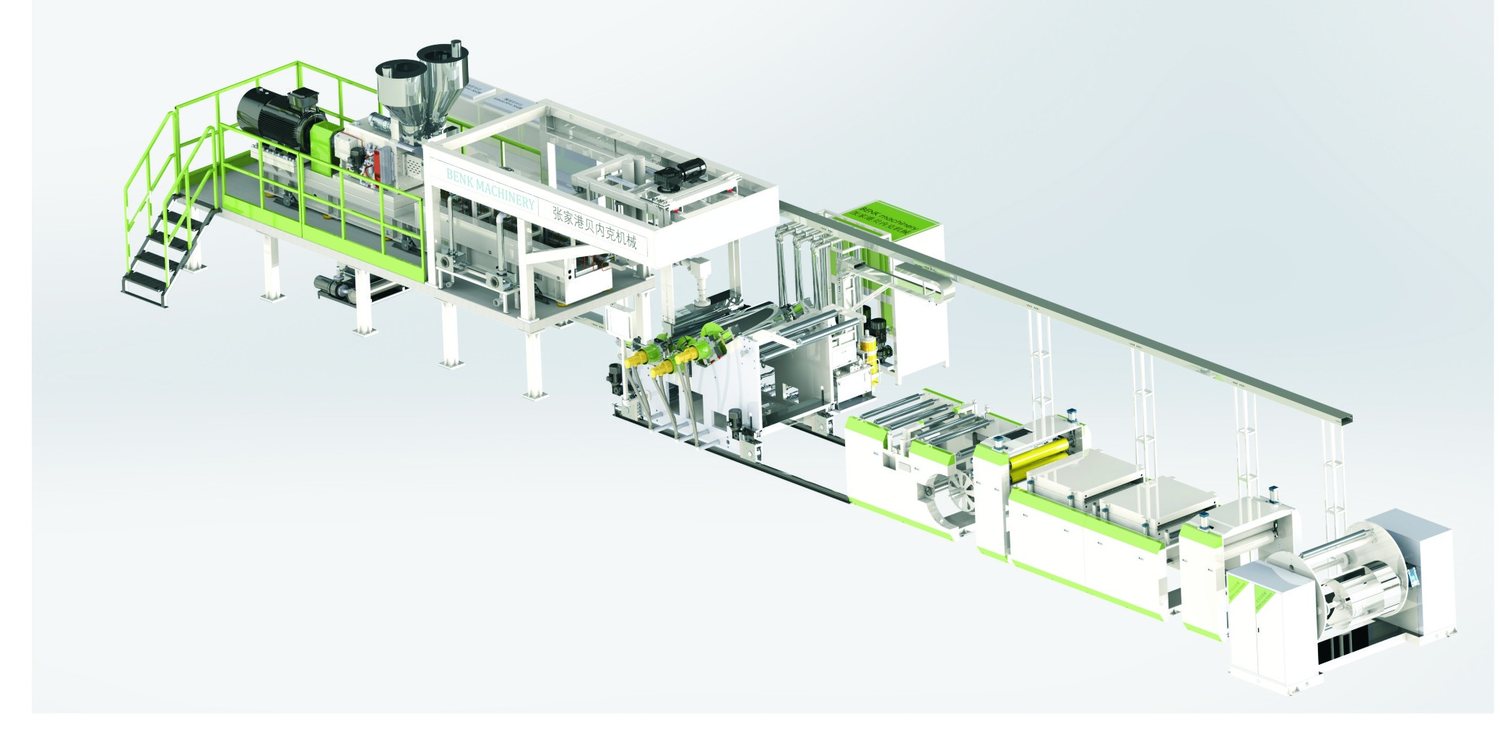

PET/PP/PS/PLA Twin Screw Sheet Extrusion Line
An energy saving twin screw sheet line for APET, PETG, CPET, RPET, PP, PS and PLA, producing 0.15-3 mm thermoforming sheet at up to 1350 kg/h with no material drying required.
RAL 5021 · semi-matt finish
Production line introduction
How the PET/PP/PS/PLA Twin Screw Sheet Extrusion Line is engineered, and which sub-assemblies protect the properties your customers actually buy.
The PET/PP/PS/PLA twin screw sheet extrusion line is an efficient and environmentally friendly production machine independently developed by the BENK team, purpose-built for manufacturers of thermoforming sheet. Whether the sheet goes into food packaging, medical packaging or daily consumer goods, the line delivers excellent performance and stability.
The process concept removes the two biggest cost drivers in PET sheet production: drying and energy. A large exhaust barrel combined with a water ring roots pump vacuum system lets the line run 100% recycled APET, PETG, CPET and RPET flake without a separate crystallizing and drying step, while the special screw and barrel geometry removes residual moisture and controls resin viscosity so the finished sheet stays transparent and tough.
Technical Parameters of PET/PP/PS/PLA Sheet Extrusion Line
Both twin screw and single screw constructions are available. Output is quoted for APET sheet at 0.5 mm thickness; the final configuration is confirmed with a material trial.
| Item | Model | Twin screw extruder | Single screw extruder |
|---|---|---|---|
| Material | APET, PETG, CPET, RPET, PLA | APET, PETG, CPET, RPET, PLA | |
| Extruder model | Ø75 / Ø85 / Ø95 | Ø90 / Ø110 / Ø120 / Ø130 | |
| Product width | 650 – 2500 mm | 650 – 2000 mm | |
| Product thickness | 0.15 – 3 mm | 0.15 – 3 mm | |
| Main motor power | 160 kW / 200 kW / 315 kW | 110 / 132 / 160 / 200 kW | |
| Max extrusion capacity | 500 – 1350 kg/h | 400 – 750 kg/h |
Need a model outside this table? Send us your sheet size, resin and target output — BENK will return a sized configuration with a budgetary price.
Production line technical advantages
Every sub-assembly below is selected to protect the properties your customers buy: transparency, gauge, strength and surface.
Energy saving design
A large exhaust barrel and water ring roots pump vacuum support 100% recycled materials and are suitable for APET, PETG, CPET and RPET, reducing energy consumption because no drying is required.
Extruder design
Special barrel and thread arrangement removes moisture and reduces PET and PLA resin viscosity, protecting intrinsic viscosity and mechanical strength.
Efficient pump system
A large displacement gear pump reduces shear heat, while the double column double station filter allows screen changes without stopping the machine.
Mould design
Well-known domestic JC-times moulds debug quickly and reduce start-up waste, which matters most on multi-layer and frequent colour change production.
Fast cooling
A self-designed spiral flow channel and thin-wall roller surface increase production speed while keeping the sheet flat and stress free.
Appearance design
Simple and beautiful industrial design with a RAL 5021 water blue, semi-matt powder coated frame that resists scratches in daily operation.
Intelligent control system
Siemens servo control and Ethernet technology deliver high efficiency and stability and support remote maintenance and fault diagnosis.
Precise winding and after-sales support
The servo winding control system ensures safer and more accurate winding, while BENK provides installation, commissioning, production support and lifelong technical service.
Production line advantages
- Excellent performance — The twin screw design ensures better melt mixing, greatly improving production efficiency and reducing energy consumption.
- Widely applicable — Supports PET, PP, PS, PLA and other materials so one line can cover several product families.
- Precision control — An advanced automatic control system keeps sheet thickness and width accurate and stable.
- Environmental protection and energy saving — Optimized design reduces material waste and improves energy utilization to meet modern environmental protection standards.
- Flexible customization — Tailor-made solutions according to customer needs so the production line fits your process perfectly.
Built to run
Multi-layer co-extrusion, in-line lamination, corona treatment and automatic roll handling can be added on request.
Process flow
From raw material to finished pack, each station is matched in capacity so the line runs at the rated output without a bottleneck.
- Vacuum feeding & dosing

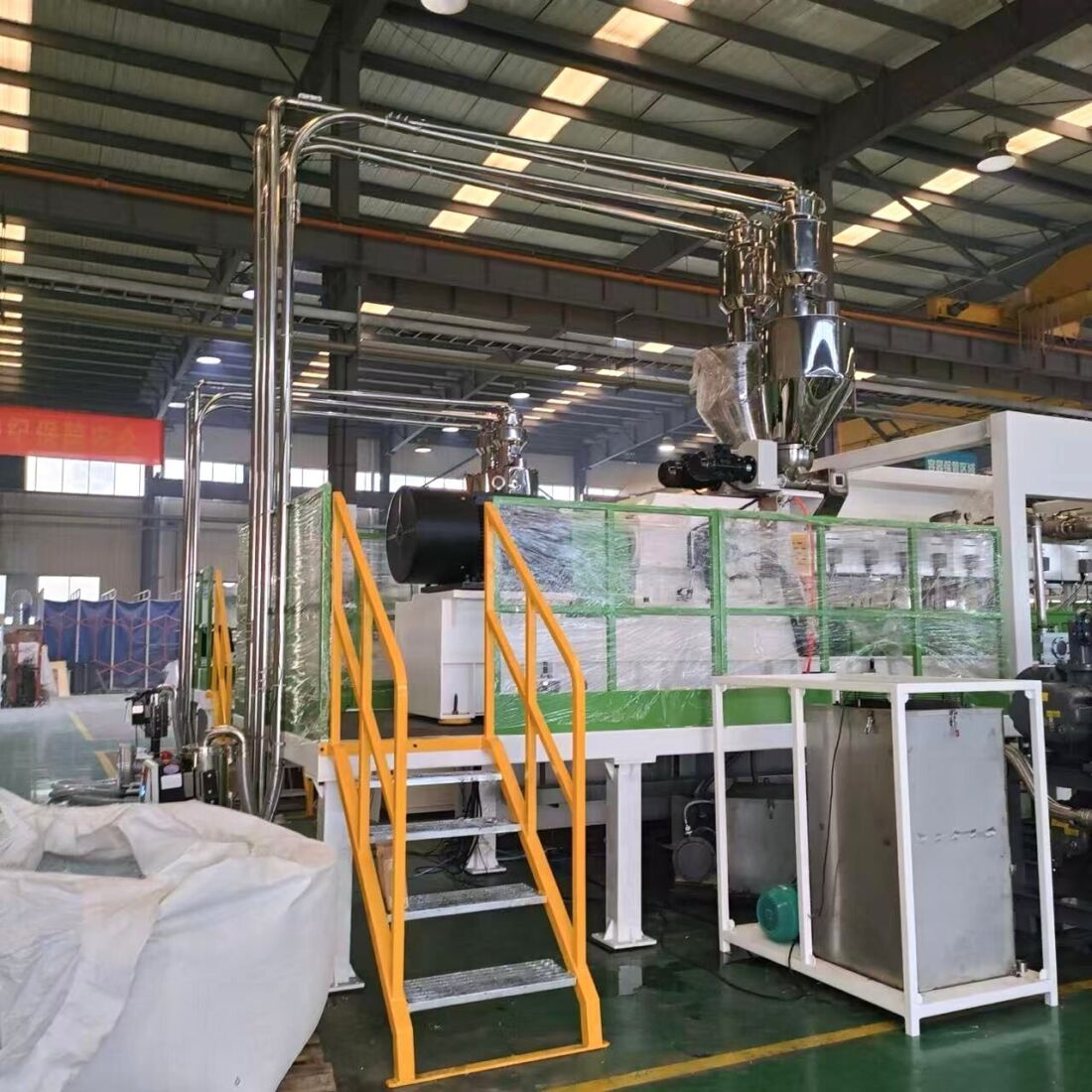

- Twin screw extrusion with degassing
- Gear pump & double station filter
- T-die sheet forming

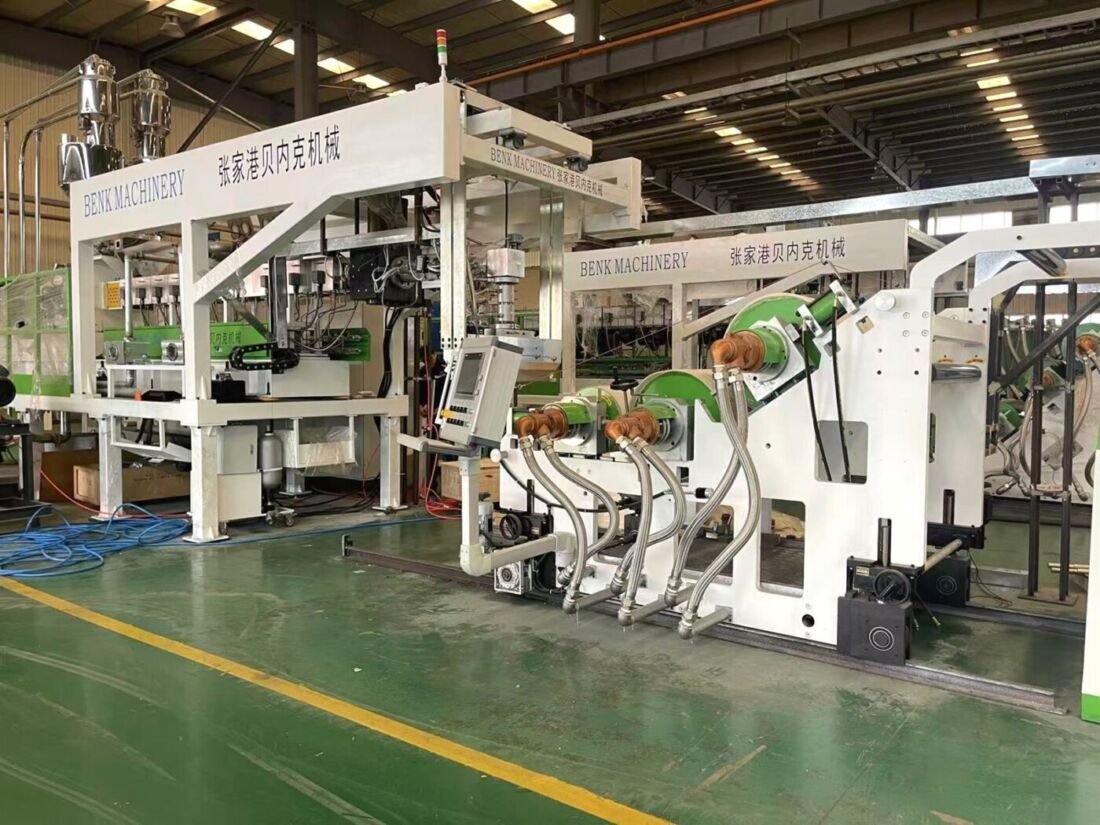

- Three-roll cooling & calendering
- Thickness gauge feedback

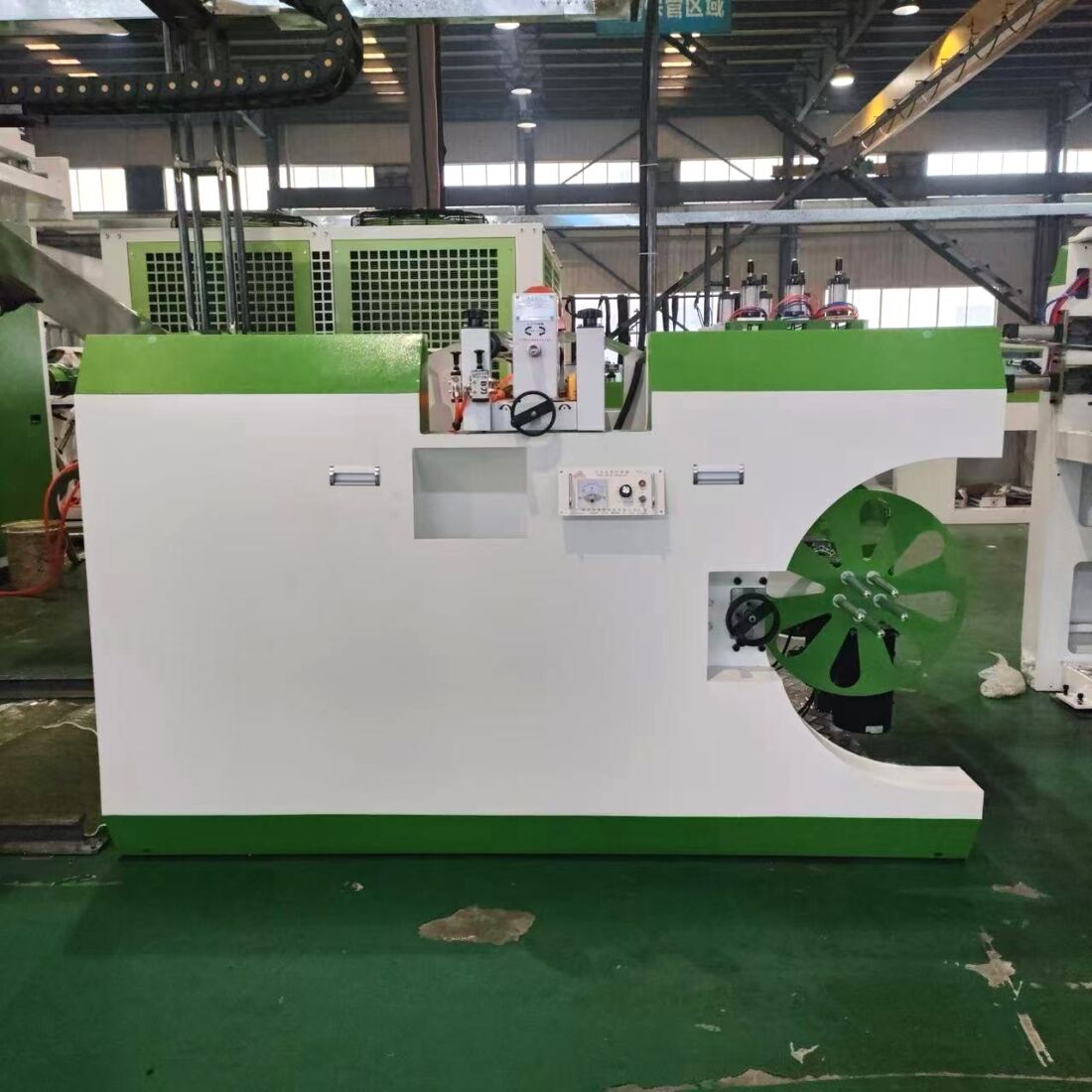

- Edge trimming & haul-off
- Servo cutting & stacking / winding
Wide applicability
Typical end uses for the material this line produces, based on the applications BENK equipment already serves worldwide.
PET sheet for high-end packaging
Used for high-end packaging, advertising display, food packaging and medical packaging, with excellent transparency, strength and heat resistance.
PP sheet for packaging and stationery
Widely used in food packaging, folders, bags and auto parts, with good chemical resistance and heat resistance.
PS sheet for disposable products
Suitable for disposable tableware, cling film, packaging containers and similar products, with good transparency and formability.
PLA sheet for biodegradable packaging
An environmentally friendly material suitable for food packaging, disposable tableware and other products, with good biodegradability.
Options and auxiliary equipment
Configure the line for the market you sell into. Popular additions include:
- Gravimetric dosing for virgin and recycled flake
- ABA / ABC multi-layer co-extrusion feed block
- Online thickness gauge with automatic die control
- Corona treater and antistatic unit
- In-line thermoforming scrap recycling
- Automatic winder with air-inflating shaft
- Robot palletizer for cut sheet
Why buy from BENK Machinery
Extrusion specialists, not traders
BENK designs and builds extrusion lines in Zhangjiagang with an in-house R&D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every line is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy-efficient drives, permanent magnet motors and optimized heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the line hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about this thermoforming sheet line.
Does the PET sheet extrusion line really run 100% recycled flake without drying?
What thickness and width can be produced?
Can one line run PET and PLA, or PP and PS?
Is the line suitable for food contact sheet?
What is included in the delivery scope?
