PE/TPO Waterproof Membrane Extrusion Line
A very wide, high output line for HDPE, LDPE and TPO waterproofing membrane, from 3000 mm to 8000 mm wide, with gravimetric dosing at 0.3% accuracy and automatic die lip adjustment.
RAL 5021 · semi-matt finish
Production line introduction
How the PE/TPO Waterproof Membrane Extrusion Line is engineered, and which sub-assemblies protect the properties your customers actually buy.
The PE/TPO waterproof membrane production line is independently developed by the BENK team using advanced extrusion technology and is designed for the production of high quality waterproof materials. The line is widely used in the construction industry and provides excellent waterproof performance and durability, ensuring the long term safety and reliability of buildings.
Success on a membrane line is decided by width stability, thickness uniformity and consistent formulation. BENK answers this with gravimetric feeding at 0.3% accuracy, a vacuum exhaust mixing system, a large diameter alloy steel roller with a double layer multi-spiral flow channel holding temperature within 1 degree C, and an automatic thickness gauge that trims the die lip while the line is running.
Technical Parameters of PE/TPO Waterproof Membrane Extrusion Line
Reference values for 1.5 mm TPO membrane. Output is quoted at the working width agreed in the technical specification.
| Item | Model | Twin screw extruder | Single screw extruder |
|---|---|---|---|
| Material | HDPE, LDPE, TPO | HDPE, LDPE, TPO | |
| Extruder model | Ø95 / Ø125 / Ø135 | Ø150 / Ø180 / Ø200 | |
| Product width | 3000 – 8000 mm | 3000 – 8000 mm | |
| Product thickness | 1 – 3 mm | 1 – 3 mm | |
| Main motor power | 315 kW / 400 kW / 500 kW | 250 kW / 315 kW / 355 kW | |
| Max extrusion capacity | 1000 – 1800 kg/h | 650 – 1200 kg/h |
Need a model outside this table? Send us your sheet size, resin and target output — BENK will return a sized configuration with a budgetary price.
Production line technical advantages
Every sub-assembly below is selected to protect the properties your customers buy: transparency, gauge, strength and surface.
Feeding system
Accurate proportioning with a formula accuracy of 0.3%, improving formula stability and saving cost on expensive additives.
Mixing system
Uniform dispersion and plasticization, with vacuum exhaust to prevent crystal points and bubbles in the membrane.
Forming machine
Vertical or horizontal three-roller forming with Siemens servo motor drive ensures synchronous speed and consistent surface quality.
Automatic thickness gauge and mould
Accurate measurement and automatic die lip adjustment ensure thickness accuracy across the full working width.
Roller design
Large diameter high strength alloy steel roller with a double layer multi-spiral flow channel keeps temperature control within 1 degree C.
Storage rack and tension control
Servo driven storage rack and tension controller ensure stable winding of the finished membrane roll.
Cutting system
Motor driven flying knife ensures accurate length and a beautiful incision at full line speed.
Appearance and service
Simple and beautiful industrial design with RAL 5021 water blue semi-matt powder coating, Siemens servo and Ethernet technical support, and lifelong after-sales service.
Production line advantages
- Efficient production — Advanced twin screw extrusion technology combined with high output and high stability.
- Excellent performance — Excellent UV resistance, temperature resistance and anti-ageing performance ensure long-term use in exposed roofing applications.
- Multi-layer structure — Supports multi-layer composite technology to improve the strength and waterproofness of the membrane.
- Intelligent control — High-precision PLC control and real-time monitoring of production ensure product quality and traceability.
- Environmental protection and energy saving — Optimized design reduces energy consumption and meets green environmental protection standards.
Built to run
Reinforcement scrim lamination, self-adhesive bitumen coating and surface texturing can be integrated for roofing membrane products.
Process flow
From raw material to finished pack, each station is matched in capacity so the line runs at the rated output without a bottleneck.
- Gravimetric feeding & mixing
- Twin screw extrusion with vacuum exhaust
- Melt pump & filtration
- Wide T-die
- Three-roller forming
- Automatic thickness gauge
- Cooling & haul-off
- Accumulator & flying knife cutting
- Servo winding
Wide applicability
Typical end uses for the material this line produces, based on the applications BENK equipment already serves worldwide.

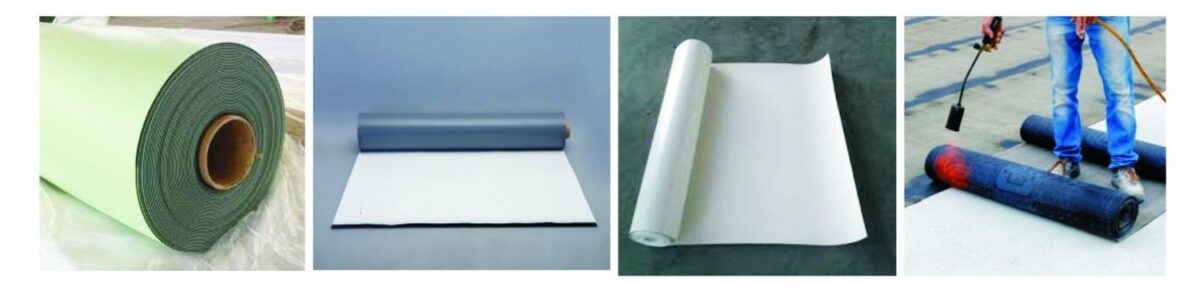

Building waterproofing
Waterproofing projects for buildings such as roofs, basements, tunnels, bridges, etc., with excellent anti-permeability and weather resistance.
Roads and bridges
Waterproof layers for roads and bridges prevent water penetration and improve structural durability.
Environmental protection projects
Waterproofing and anti-seepage for environmental protection projects such as landfills and sewage treatment plants, with good resistance to chemical corrosion.
Industrial facilities
Waterproofing protection for industrial facilities, such as warehouses and chemical plants, to ensure long-term stability.
Options and auxiliary equipment
Configure the line for the market you sell into. Popular additions include:
- Reinforcement scrim or fabric lamination
- Self-adhesive bitumen coating unit
- Surface embossing and texturing
- Multi-layer co-extrusion feed block
- Automatic roll handling and packing
- Online width and thickness measurement
- Factory acceptance test with your formulation
Why buy from BENK Machinery
Extrusion specialists, not traders
BENK designs and builds extrusion lines in Zhangjiagang with an in-house R&D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every line is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy-efficient drives, permanent magnet motors and optimized heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the line hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about this waterproof membrane line.
How wide can the waterproof membrane line run?
What is the maximum output of the PE/TPO waterproof membrane line?
How do you keep thickness uniform across an 8 metre wide sheet?
Can the line produce multi-layer membranes?
What testing is done before shipment?
