Automatic Pipe and Drip Tape Winder
A two station automatic winder that counts length, cuts, changes the reel, straps the coil and discharges it without stopping the line.
RAL 5021 · semi-matt finishProduct introduction
How the Automatic Pipe and Drip Tape Winder is engineered, and which sub-assemblies protect the performance your customers actually buy.
At the end of a high speed drip tape or pipe line, the winder has to keep up. If the winder stops, the whole line stops, so a two station machine that counts length, cuts, transfers and straps automatically is essential to hold rated output.
The BENK MACHINE winder handles pipe from 6 to 25 mm and coils up to 800 mm outside diameter. Length is counted automatically and the pipe is cut to the set length, then the coil is strapped with PP or PET band, unloaded and conveyed away, while the second station continues winding.

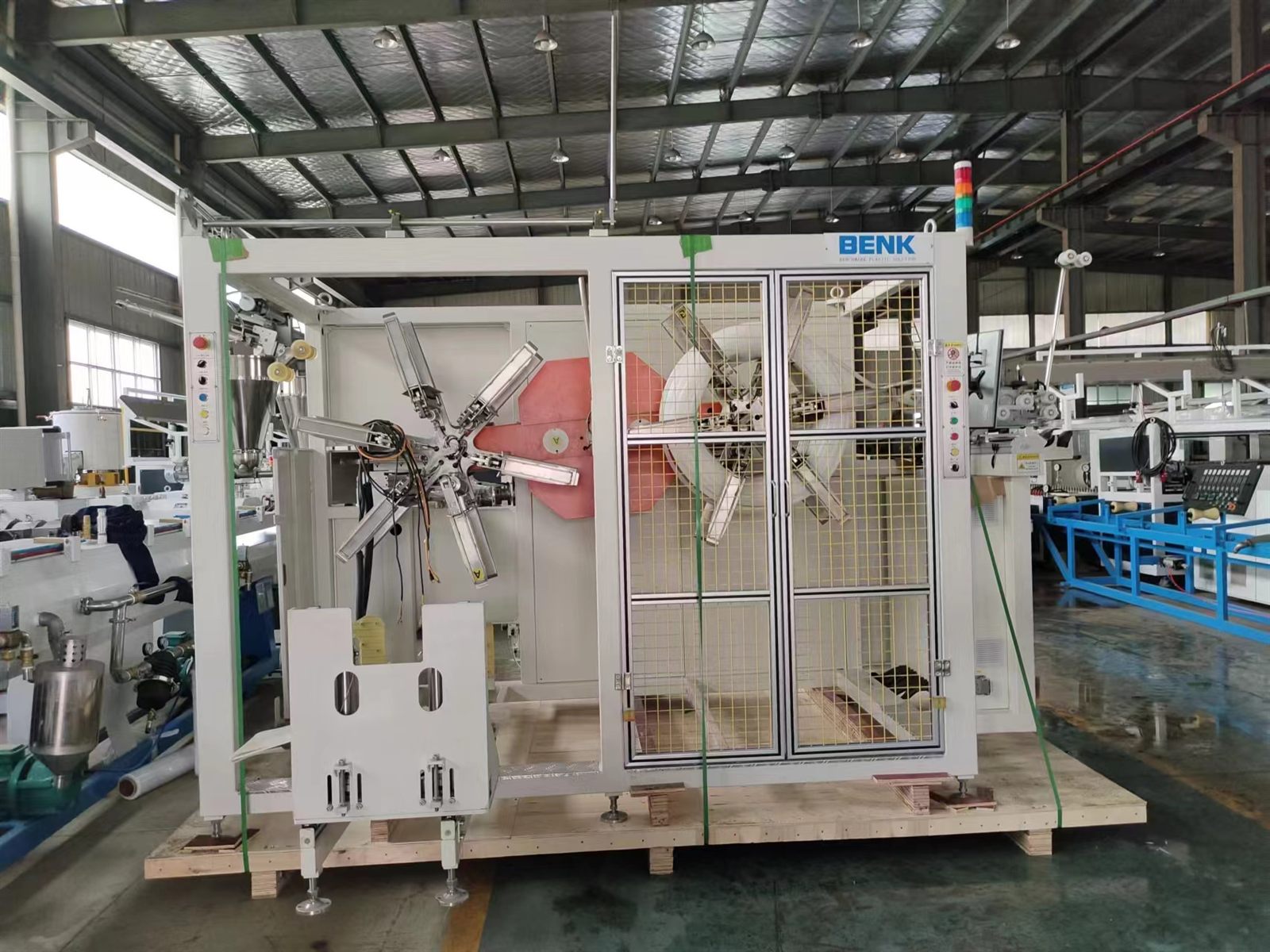

Product images and technical drawings
Equipment photographs and engineering illustrations of the product construction.
Technical parameters
Reference values for the standard configuration. Final dimensions, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Models | QCOSJ-280 for small bore, CDSJ800 for larger bore |
| Pipe outside diameter | 6 to 12 mm, or 6 to 25 mm |
| Stations | Two, with automatic changeover |
| Coil inner diameter | 150 mm, or 300 to 500 mm |
| Coil outer diameter | Up to 280 mm, or up to 800 mm |
| Coil width | Up to 150 mm, or up to 250 mm |
| Winding speed | 80 to 100 m per minute |
| Automation | Length counting, auto cutting, auto strapping, auto unloading, auto conveying and wrapping |

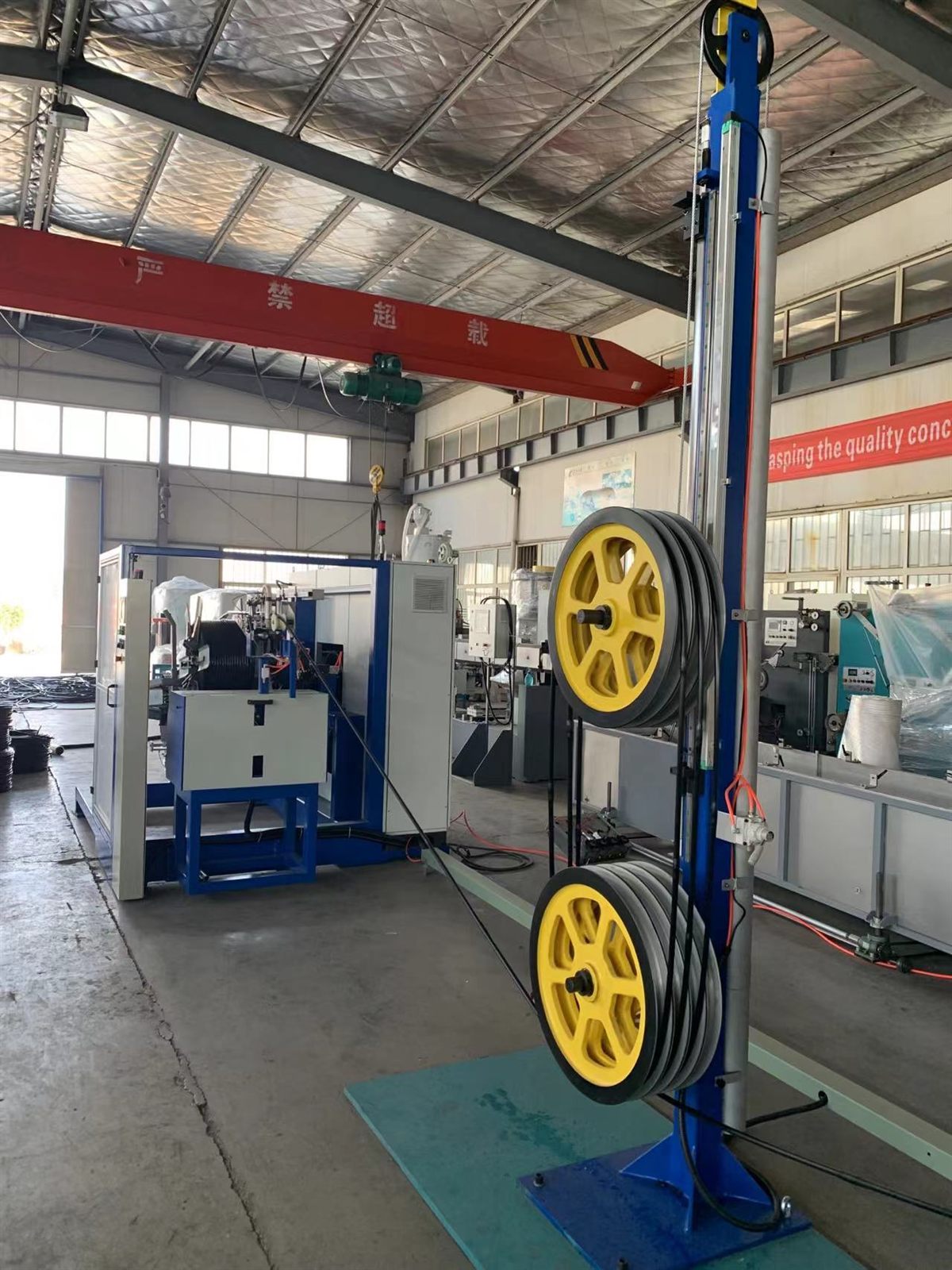

| Options | Pipe accumulator, automatic film wrapping station |
Need a configuration outside this table? Send us your product drawing, resin and target output and BENK MACHINE will return a sized proposal with a budgetary price.
Technical advantages
Every sub-assembly below is selected to protect the performance your customers buy.
Continuous winding
Two stations run alternately, so the line does not stop when a coil is complete.
Automatic length and cut
Length is counted electronically and the tape is cut at the set value, giving consistent coil lengths.
Automatic strapping
The finished coil is bound with PP or PET strap automatically, which reduces manual handling.
Automatic unloading
The strapped coil is discharged onto a conveyor without an operator lifting it.
Size changeover
Coil size is changed quickly, so one winder can serve several products.
PLC and HMI control
Operation and maintenance are straightforward, and parameters are stored in recipes.
Key benefits
- Continuous winding — Two stations run alternately, so the line does not stop when a coil is complete.
- Automatic length and cut — Length is counted electronically and the tape is cut at the set value, giving consistent coil lengths.
- Automatic strapping — The finished coil is bound with PP or PET strap automatically, which reduces manual handling.
- Automatic unloading — The strapped coil is discharged onto a conveyor without an operator lifting it.
Built to run
Material preparation, processing and downstream handling can be integrated into one turnkey scope from a single supplier.
Process flow
Each station is matched in capacity so the machine runs at the rated output without a bottleneck.
- Tape or pipe arrives from the haul-off
- Length counting
- Traversing and winding on station 1
- Cut at the set length
- Index to station 2 and continue winding
- Strapping of the finished coil
- Automatic unloading to the conveyor
- Film wrapping and palletising where required
Applications
Typical end uses for this product, based on the applications BENK MACHINE equipment already serves worldwide.
Drip tape lines
Winding finished tape into saleable coils.
Drip pipe lines
Coiling round dripper and PC pipe.
Layflat hose lines
Coiling hose after extrusion.
Post-extrusion packaging
Any flexible pipe product that is sold in coils.
Options and auxiliary equipment
Configure the machine for the market you sell into. Popular additions include:
- Extra winding stations
- Film wrapping station
- Coil labelling and printing
- Conveyor and palletising
- Stainless steel water circuit
- Extended warranty and service contract
Why buy from BENK MACHINE
Extrusion specialists, not traders
BENK MACHINE designs and builds extrusion and drip irrigation equipment in Zhangjiagang with an in-house R and D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment

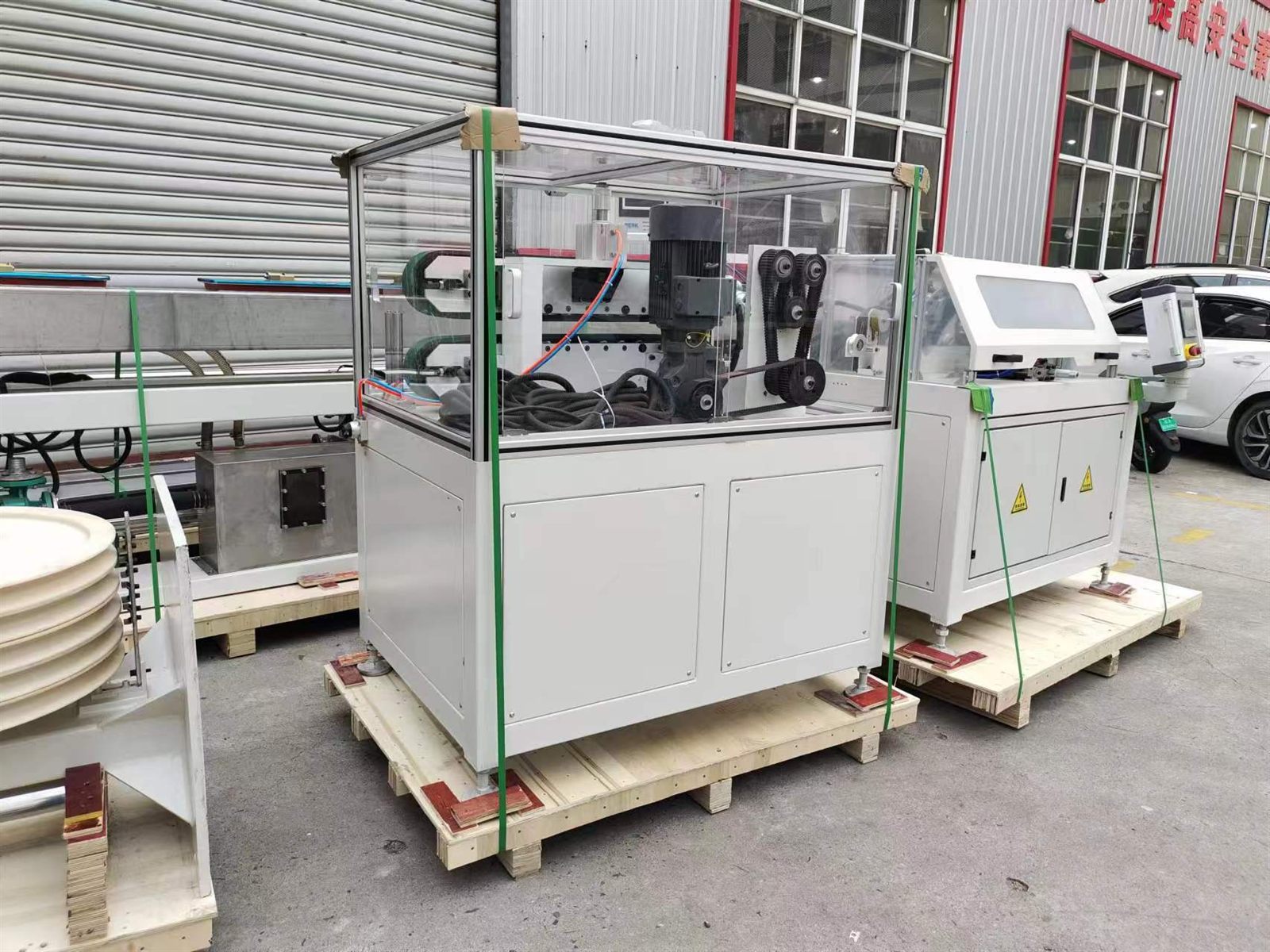

Every machine is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy efficient drives, permanent magnet motors and optimised heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the machine hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about the Automatic Pipe and Drip Tape Winder.
Does the winder stop the line to change coils?
What coil sizes are supported?
Is film wrapping included?
Get a quotation for the Automatic Pipe and Drip Tape Winder
Tell us the product specification, target output and the country the machine will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
- Telephone
- +86 512 5896 1463
- Mobile / WhatsApp / WeChat
- +86 159 5096 2426
- kpm@benkpm.com
- Address
- No.20 Huatang Road, Economic Development Zone (South District), Zhangjiagang City, Jiangsu Province, China
