Labyrinth Drip Tape Production Line
A compact, economical line that forms the maze flow channel directly on the tape wall, the lowest investment route into drip tape production.
RAL 5021 · semi-matt finishProduct introduction
How the Labyrinth Drip Tape Production Line is engineered, and which sub-assemblies protect the performance your customers actually buy.

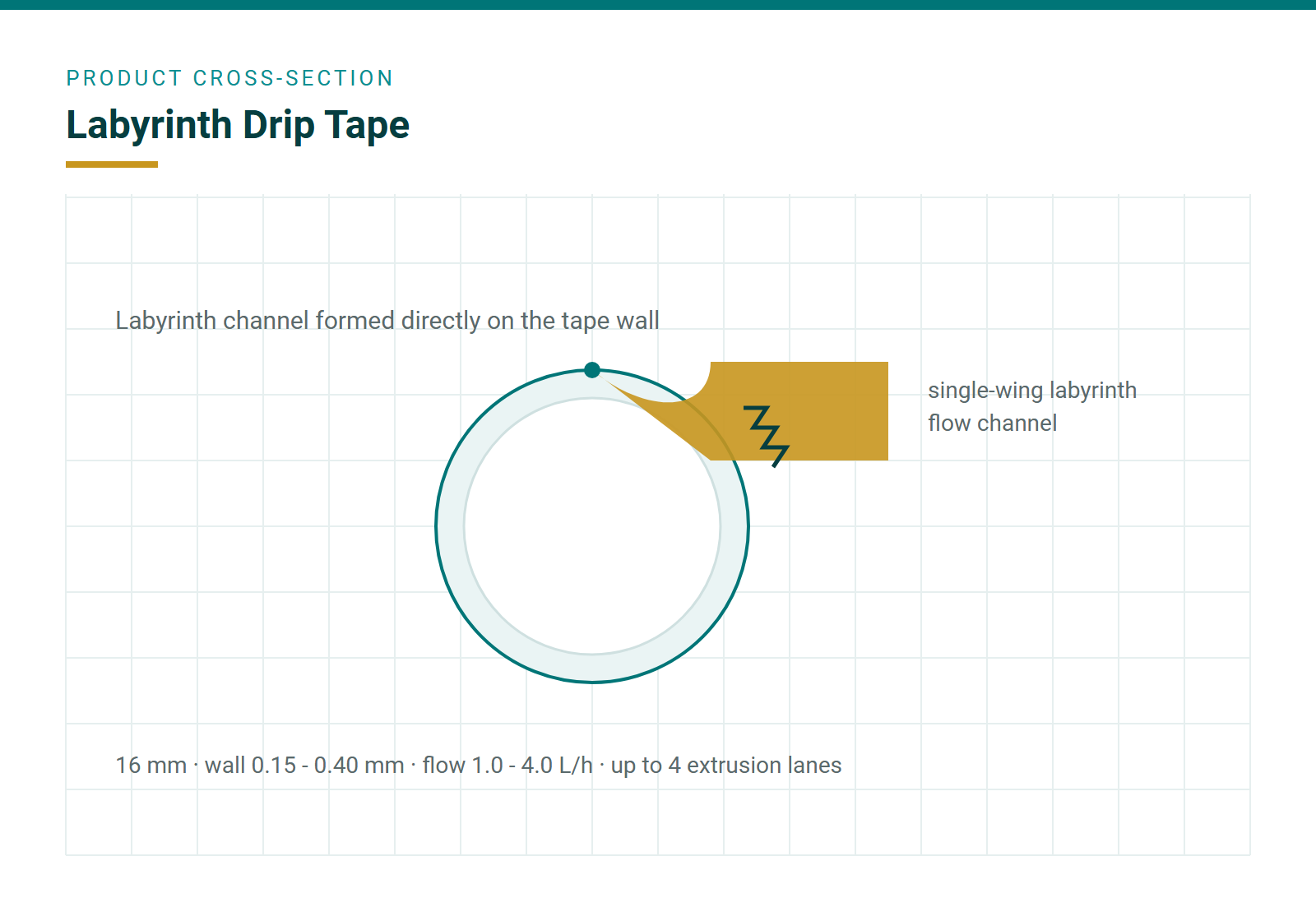

Labyrinth or single wing tape is the earliest and still the most economical form of drip tape. A forming wheel presses the maze channel into the wall while the tube is still soft, so the flow path is created without any inserted emitter.
The investment is lower and the line is simpler to operate than an inline dripper line, which makes it a good entry point for producers serving local markets. The forming wheel and the maze insert determine the accuracy of the channel, so BENK MACHINE machines the tooling and grades the surface finish in house.

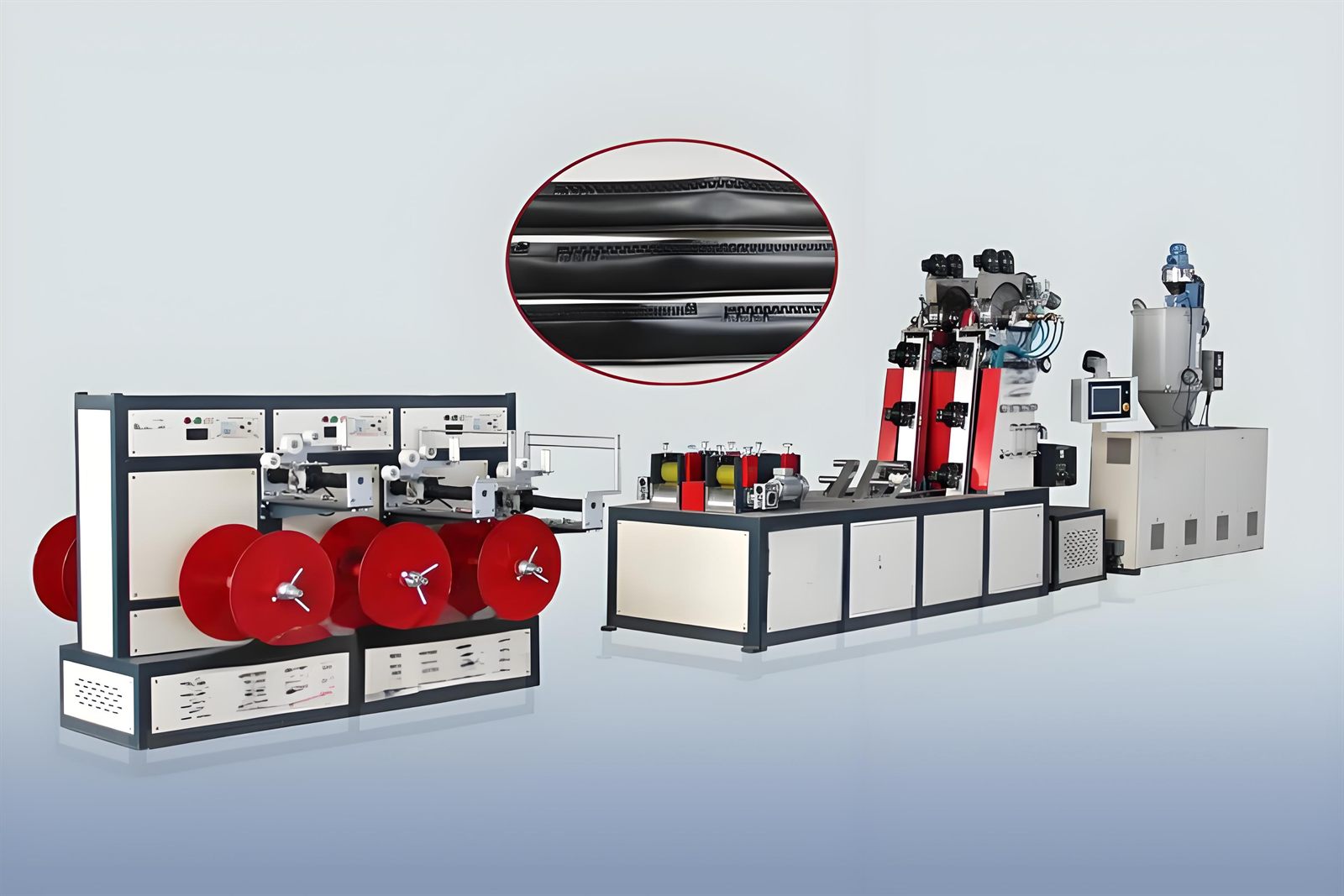

Product images and technical drawings
Equipment photographs and engineering illustrations of the product construction.
Technical parameters
Reference values for the standard configuration. Final dimensions, speed and output are confirmed against your material, product drawing and target capacity.
| Item | Specification |
|---|---|
| Product type | Single wing labyrinth drip tape |
| Tape diameter | 16 mm |
| Wall thickness | 0.15 – 0.40 mm |
| Flow rate | 1.0 – 4.0 L/h |
| Extrusion lanes | Up to 4 lanes per head |
| Forming | Forming wheel with vacuum sizing and cooling |
| Recycled material | High regrind ratio supported by the screw design |
| Downstream | Haul-off, length counting and winding |
Need a configuration outside this table? Send us your product drawing, resin and target output and BENK MACHINE will return a sized proposal with a budgetary price.
Technical advantages
Every sub-assembly below is selected to protect the performance your customers buy.
Low investment
Fewer sub assemblies than an inline dripper line, so the entry cost is lower.
Simple operation
The process is easy to run and maintain, which suits producers new to drip tape.
Economical raw material
The specially designed screw processes regrind efficiently, reducing resin cost per metre.
Precision tooling
The forming wheel and maze insert are machined in house to keep the channel accurate.
Uniform water distribution
The maze channel is designed for even distribution and good clogging resistance.
Complete line supply
Feeding, extrusion, forming, haul-off, winding and PLC control are supplied as one package.
Key benefits
- Low investment — Fewer sub assemblies than an inline dripper line, so the entry cost is lower.
- Simple operation — The process is easy to run and maintain, which suits producers new to drip tape.
- Economical raw material — The specially designed screw processes regrind efficiently, reducing resin cost per metre.
- Precision tooling — The forming wheel and maze insert are machined in house to keep the channel accurate.
Built to run
Material preparation, processing and downstream handling can be integrated into one turnkey scope from a single supplier.
Process flow
Each station is matched in capacity so the machine runs at the rated output without a bottleneck.
- Resin dosing
- Extrusion and filtration
- Tube forming through the die
- Maze channel forming on the wheel
- Vacuum sizing and cooling
- Haul-off and tension control
- Outlet punching
- Winding and packing
Applications
Typical end uses for this product, based on the applications BENK MACHINE equipment already serves worldwide.
Cereal and row crops
Seasonal field irrigation where cost per hectare is the main driver.
Vegetables
Open field vegetable production on small and medium farms.
Orchards
Tree and vine irrigation where a thin economical tape is acceptable.
Local market supply
Producers serving domestic markets with a low cost tape.
Options and auxiliary equipment
Configure the machine for the market you sell into. Popular additions include:
- Automatic reel change robot
- Online optical inspection with auto correction
- Gravimetric blender with extrusion process control
- Bimetallic screw and barrel
- Melt pump for stable pressure
- Remote maintenance and fault diagnosis
Why buy from BENK MACHINE
Extrusion specialists, not traders
BENK MACHINE designs and builds extrusion and drip irrigation equipment in Zhangjiagang with an in-house R and D and process team, so machine selection is matched to your resin and product instead of a catalogue number.
Evidence before shipment
Every machine is assembled and run in our works. You receive trial video, gauge and output records, and are welcome to attend the factory acceptance test.
Total cost, not lowest price
Energy efficient drives, permanent magnet motors and optimised heating reduce kWh per tonne, which usually matters more over five years than the initial purchase price.
Real commissioning support
Our engineers install, commission, train your operators and stay involved until the machine hits the specified output and quality on your material.
Spares and response
Critical spares are stocked for fast dispatch, and the Siemens Ethernet control platform allows remote diagnosis before a service visit is needed.
Upgrades as you grow
Co-extrusion, gauge control, automation and downstream equipment can be added later, protecting your original investment.
Frequently asked questions
The questions buyers ask most often about the Labyrinth Drip Tape Production Line.
How does a labyrinth line differ from an inline dripper line?
How many lanes can be produced at once?
Can regrind be used?
Get a quotation for the Labyrinth Drip Tape Production Line
Tell us the product specification, target output and the country the machine will be installed in. We will reply with a sized configuration, a budgetary price and an indicative delivery time.
